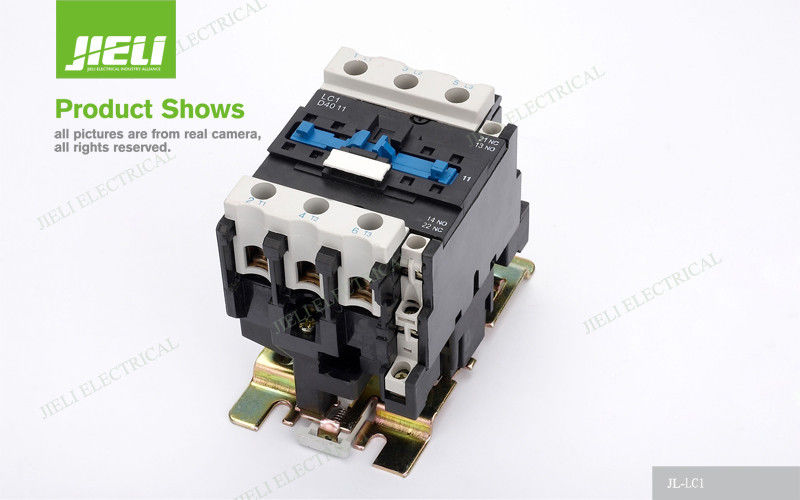

3P 220V Micro AC Magnetic Contactor With Electrical Isolator Switch

Large Image : 3P 220V Micro AC Magnetic Contactor With Electrical Isolator Switch

Product Details:

Place of Origin:	Zhejiang, China (Mainland)
Brand Name:	JIELI
Certification:	CE/ISO9001/CB/TUV
Model Number:	JL-LC1D65

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Price:	Negotiable
Packaging Details:	Standard export cartons or according to the customer's requirements Packing quantity:50 pcs/carton Packing measurement:Carton40x26x20 cm /44x31x22cm/41x27x26cm/42x26.5x26cm N.W:18 KG/carton G.W:20KG/carton
Delivery Time:	Within 20days
Payment Terms:	L/C,D/P,T/T, Western Union, MoneyGram
Supply Ability:	1000000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Highlight:	general electric contactor

3P 220V Micro AC Magnetic Contactor With Electrical Isolator Switch

Quick Detail:

Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Model Number: JL-LC1D65
Electricity Type: AC
Number of Pole:3P
Phase:3
Pole:3P,4P
Main Circuit Rating Voltage:690V
Main Circuit Rating Current:200A
Voltage: up to 660V
Current: up to 95A
Frequency: 50HZ/60HZ
Cover: fire proof
Quality: Stable and reliable
Price: competitive

Description:

JI- LC1D65 Series AC Magnetic Contactor are mainly used in 50 HZ/60HZ electrical lines of the rated voltage up to 660v AC and rated current up to 370A, are applicable for remote making anf breaking of electrical lines or frequent control of AC motors, having no-voltage protection, Usually, JL-LC1D65 AC Magnetic Contactorcan be combined with JR29 series thermal relay to form electromagnetic starters which have overload and open-phase protection, JL-LC1D65 AC Magnetic Contactor complies with IEC60947-4-1.

Applications:

JL-LC1 Series AC Magnetic Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz. Rated current up to 620A, for making, breaking, frequently starting&controlling the AC

motor. Combined with the auxiliary contact block, time & machine-interlocking device etc, it because the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, JL-LC1D65 AC Magnetic Contactoris combined into the electromagnetic starter. The JL-LC1D65 AC Magnetic Contactor comply with IEC60947-4.

Model		D09	D12	D18	D25	D32	D40	D50	D65
Rated working current(A)	AC3	9	12	18	25	32	40	50	65
Rated working current(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28
AC3 Capacity of 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	8.5	7.5	11	15	18.5
	380/400V	4	5.5	7.5	11	15	18.5	22	30
	415V	4	5.5	9	11	15	22	25	37
	500V	5.5	7.5	10	15	18.5	22	30	37
	660/900V	5.5	7.5	10	15	18.5	30	33	37
Rated heat current(A)		20	20	32	40	50	60	80	80
Electrical life	AC3×104	100	100	100	100	80	80	60	60
Electrical life	AC4×104	20	20	20	20	20	15	15	15
Mechanical life×104		1000	1000	1000	1000	800	800	800	800
Number of the contacts		3P+NO					3P+NC+NO
Number of the contacts		3P+NC					3P+NC+NO

Competitive Advantage:

1. JL-LC1D65 AC Magnetic Contactor is Magnetic Contactor.
2. The Rated voltage of JL-LC1D65 AC Magnetic Contactor is 660V,the frequency of JL-LC1D65 AC Magnetic Contactor is 50/60Hz,rated current is up to 95A.
3. JL-LC1D65 AC Magnetic Contactor spare parts supplier.
4. JL-LC1D65 AC Magnetic Contactor has 5 years warranty.
