Product Details:
Payment & Shipping Terms:
|
Refrigerant: | R23/R404A | Material: | Stainless Steel Plate(SUS304) |
---|---|---|---|
Product Name: | Thermal Cycling Device | External Dimension: | 1000x1000x800 Mm(W*H*D) |
Temperature And Humidity Range: | -70°C~150°C; 20%-98%R.H | Compressor: | Closed Compressor (French Tecumseh Or German Copeland ) |
Highlight: | temperature and humidity chamber |

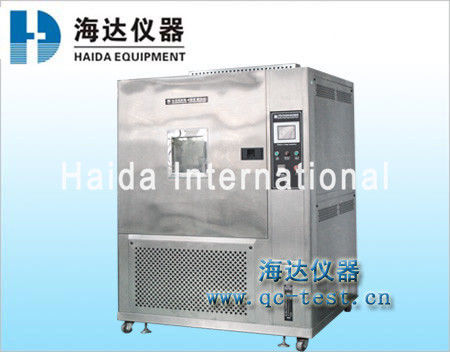

High Quality Programmable Simulated Environment Laboratory Equipment 1000L Temperature Humidity Chamber
Product Description:
1000L Laboratory Temperature Humidity Chambers can do constant temperature and humidity testing ,temperaturing resistanceing ,humdity resistance testing for electronic products and other products . this temperature humidity chamber be with 1000L internal testing chamber.This very spacious size of the testing of the box is very suitable for multi-functional laboratory and large products company's QC QA detection with different sizes of products.
Application industry (not limited to the following):
Function and Features:
Parameters:
Inspect standard:JJF-1101,GB/T 10592,GB/T 10586
Testing standards:YD/T 2061,HB 7122.3,6783.7,GJB 5382.7,GJB 150,GB/T 2423,5170.2,5170.5,5179.2, ASTM E512,NF EN 60068-2-38,CNS 12565,12566,KS C0227,KS C022
Standard Features:
Item | Specification |
Internal dimension | (W*H*D) 1000x1000x800mm |
External dimension | (W*H*D) 1550x2100x1400mm |
Temperature range | -70~+150℃ |
Temp. & Humid. deviation | ±0.5℃,±2%RH |
Humidity range | 20~98%R.H. (Refer Image below) |
Temp. & Humid. average difference | ±2℃,±3%RH |
Cooling speed | 0.7~1.2℃/min |
Heating speed | ≤2.5℃/min |
Internal chamber material | SUS#304 stainless steel, mirror finished |
External chamber material | Stainless steel with paint spray |
Cooling method | Air cooling |
Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
Insulation material | 50mm high density rigid Polyurethane foam |
Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
Compressor | France Tecumseh compressor |
Lighting | Heat resistance |
Temperature sensor | PT-100 dry and wet bulb sensor |
Observation window | Tempered glass |
Testing hole | Diameter 50mm, for cable routing |
Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
The original device configuration:
Exterior material | SUS#304 Stainless steel |
Interior material | SUS#304 cold-roll steel sheets with rust prevention or SUS#304 Stainless steel plate |
Insulation Material | PU foam and fiberglass |
Moist material | Glass fiber |
Heaters | Nicochrome Stainless steel pipe heater |
Humidification pipe | Evaporation occurs stainless steel electric mode of the U-shaped humidifier |
Air circulation system | 60W high temperature motor, Wind round stainless steel multi-wing, special air circulation system with adjustable. |
Door | Singer door,Window 280mm×265mm×40 mm three vacuum layers |
Box | Foshan Photo |
Water tank | Stainless steel water tank,Automatic pump,Alarm device of water shortage ,Water shortage alarm,Stop to protect when long water shortage. |
Main electrical components | Taiwan Adventist AC contactor,Thermal relay,Time Relay,OMRON AC relay, Three controller Korea,Italian dry protector etc. |
Safety devices | water protection,water shutdown protection,high-pressure compressor protection,compressor thermal protection,compressor overload. protection,fast fuse,buzzer alarm,overload protection. |
Cooling system and heating system:
Compressor | Tecumseh of France, all closed. |
Refrigerant | R23 / R404A Environmental protection refrigerant (DuPont of USA) |
Condenser | Air Force Taiwan Kuwait shell and tube condenser |
Evaporator | Taiwan Kuwait force fins multi zone automatic load capacity adjustment |
Expansion of the system | capacity control of cooling system |
Refrigeration Service parts | all imported electromagnetic valve (Japan, "Heron House), the pressure controller (Danfoss), the oil separator (Danfoss) and other cooling accessories |
Control system:
Installation environment:

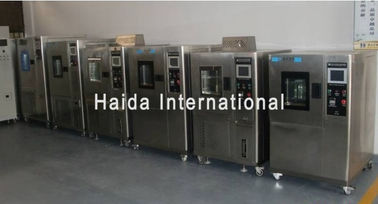

(climatic chamber chamber)Related Products: | |||
Model / Link | Interior Dimensions(W x D x H) | Temperature Range | Humidity range |
HD-E702-100 | 400*500*500mm | -70~+150℃ | 20~98%R.H. |
HD-E702-150 | 500*500*600mm | -70~+150℃ | 20~98%R.H. |
HD-E702-225 | 500*600*750mm | -70~+150℃ | 20~98%R.H. |
HD-E702-408 | 600*800*850mm | -70~+150℃ | 20~98%R.H. |
HD-E702-1000 | 1000*800*1000mm | -70~+150℃ | 20~98%R.H. |
