Silicone Membrane Switch Panel

China Silicone Membrane Switch Panel supplier
Silicone Membrane Switch Panel supplier Silicone Membrane Switch Panel supplier

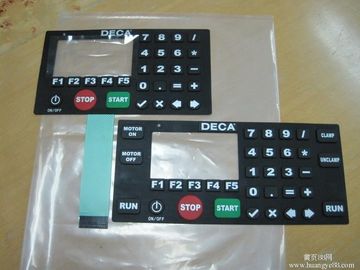

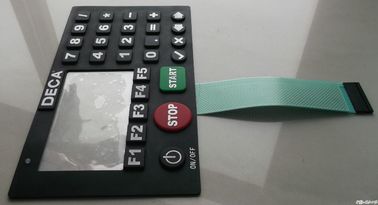

Large Image :  Silicone Membrane Switch Panel

Product Details:

Place of Origin: DongGuan China
Brand Name: TianTai
Certification: ISO9001:2008, SGS,Rohs
Model Number: TT-MS-001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Inner packing:1pc/PP bag,PE bag; Outer packing: exporter carton, or as per customer request.
Delivery Time: Around 14-18 business days after payment.
Payment Terms: T/T, Paypal or Western union
Supply Ability: 500000 Piece/Pieces per Month
Contact Now
Detailed Product Description



Description:



Silicone Keypad / Metal Dome PET Membrane Switch Panel With Embossing , 1500 V DC




1) Custom made OEM / ODM
2) Silicone rubber keypad panel
3) Assemble With Membrane Switch
4) Withstand millions of cycles

5) perfect exterior and good touch feeling

6) metal dome or silicone keypad is also available.

7) Carbon Pills For Contact With PCB Board.



Applications:



Our Silicone keypad panel membrane switches are widely used in :

  •  Medical Equipment
  •  Telecommunications apparatus
  •  Telephone systems
  •  Household appliances
  •  Security systems
  •  Point of sale apparatus
  •  Industrial controls
  •  Access control systems.....





wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree





Specifications:



1 material : PET / PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality





Competitive Advantage:



1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2. Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.

3. Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.

4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.

6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.

7. Customized specification is available and keys can make different shapes
