M467 / 3M468 Adhesice Membrane Switch Keyboard Durable Non-tactile

China M467 / 3M468 Adhesice Membrane Switch Keyboard Durable Non-tactile supplier

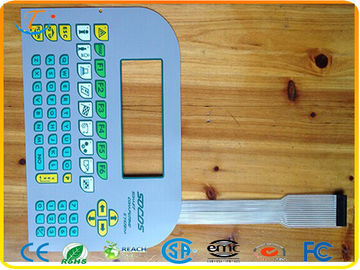

Large Image :  M467 / 3M468 Adhesice Membrane Switch Keyboard Durable Non-tactile

Product Details:

Place of Origin: guangdong,china
Brand Name: Tiantai:membrane switch
Certification: SGS
Model Number: TT02

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: EXW price/FOB shenzhen port price
Packaging Details: standard export market
Delivery Time: within 15 workdays after confirm sample
Payment Terms: T/T,western union,paypal
Supply Ability: 100000pcs/year
Contact Now
Detailed Product Description

M467 / 3M468 Adhesice Membrane Switch Keyboard Durable Non-tactile









Membrane switch, be made up of soft insulated material layer and conductive material layer, is a kind of multilayered structured self-unlocked press switch. Press switch, panel, functional mark, read display window, indicator light transparent window, switch circuit derivation line and the character, sign, and decorative contents in general panel make up of the electronic operative system. It is now widely used in many products in various professions.



  1. overlay material : PET /PC
  2. adhesive: 3M467 & 3M468 or as per request
  3. High life time :>1million times
  4. Pass:ISO9001:2008 RoHS.SGS
  5. Membrane Switch Overlay
  6. Custom made OEM/ODM
  7. Rasing available
  8. Membrane switch faceplate
  9. Withstand millions of cycles
  10. perfect exterior
  11. metal dome or silicone keypad is also available.
  12. Connector with housing



Parameter



Maximum Circuit Rating 35V( DC)100mA 1W
Contact Resistance 10Ω~500Ω(Depending on trace length & material used).
Insulation Resistance 100MΩ at 100V DC
Dielectric Withstand 250 V Rms (50~60 Hz 1 min.)
Contact Bounce 5ms
Life Expectancy Flat type ≧ 5 million closures
Mylar type ≧ 2 million closures
Metal type ≧ 1 million closures
Actuation Force Flat type = 60 to 300 g (2 to 10 oz)
Tactile type = 180 to 400 g (6 to 14 oz)
Switch Stroke Flat type = 0.1 to 0.5mm
Tactile type = 0.6 to 1.5mm
Operation Temperature Flat/Metal dome: -40 °C to +80 °C
Poly dome: -20 °C to +55 °C
Storage Temperature Flat/Metal dome: -40 °C to +85 °C
Poly dome: -40 °C to +60 °C
Humidity 40 °C , 90% ~ 95% for 240 hours
Vibration 20 G's0 max
(10-200 Hz,MIL-STD-202,M204,Condition B)







Applications:



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.
