Membrane Overlay Keyboard and graphic overlayer nameplate Light Weight High Reliability

China Membrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High Reliability supplier
Membrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High Reliability supplier Membrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High Reliability supplier Membrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High Reliability supplier Membrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High Reliability supplier

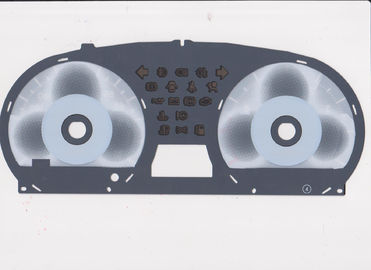

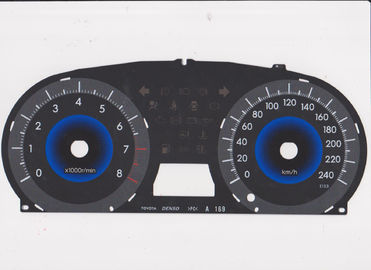

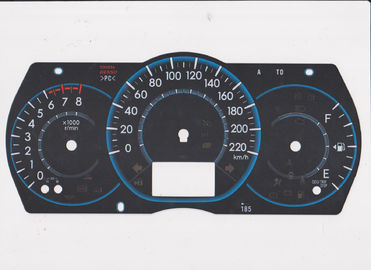

Large Image :  Membrane Overlay Keyboard and graphic overlayer nameplate Light Weight High Reliability

Product Details:

Place of Origin: Dongguan China
Brand Name: customization
Certification: ISO9001
Model Number: HHC-TS-106

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Inner packing: foam and bubble bags outer packing: export carton or according to the customer request
Delivery Time: 7-15 workdays
Payment Terms: T/T L/C
Supply Ability: 1000000 pieces per month
Contact Now
Detailed Product Description
Material: PC1151 Color: Black And Red Etc.

Embossed LED Membrane Overlay Keyboard 25mA - 100mA , Multi Colored Printed



  1. rated current:25-100mA,0~30V DC
  2. Multicolored printed ,embossed
  3. Embeded in LEDs
  4. Material:Matte PC(smooth),gloss PC+matte oil ,gloss PC,PET,and PVC
  5. Adhesive:3M467,3M468,and no adhesive
  6. Feature:moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
  7. wire lead resistance:<1Ω/CM
  8. Insulation resistance:<100MΩ,250V DC



Applications:



Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,

Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,

Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.





Specifications:



1 material : PET /PC
2 adhesive: 3M467 & 3M468
3 High life time :>1million times
4 Pass:ISO9001:2008RoHS.
5 High quality





Technical Specification Of Membrane Switch



wire lead resistance:

<1Ω/CM



Life time:

>1 Million times

rated current:

25-100mA,0~30V DC



Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC



Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC



Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm



Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm



Tail flexiblility:

any angle within 180 degree





Competitive Advantage:



1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.

2.Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.

3.Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.

4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.

5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.

6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.

7.Customized specification is available and keys can make different shapes



Membrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High ReliabilityMembrane Overlay Keyboard and graphic overlayer  nameplate Light Weight High Reliability





Detailes:



Metal Dome Membrane Switch:

Material:Matte PC(smooth),gloss PC+matte oil ,gloss PC,PET,and PVC

Thickness:0.05-1.0mm

Embossed keys:No embossed keys and domes,domes without embossed keys,embossed keys without domes,embossed keys and domes

Adhesive:3M467,3M468,and no adhesive

Tail :Tail with clear mask or green mask

Specialize in manufactuing membrane switch

Overlay+circuit+metal dome or poly dome array+connector+double side tape

Rubber keys

Metal domes

Flat without Tactile Effect

Embossing with Tactile Effect

Embossing with Metal Dome

Membrane Switch with FPC
