Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG

China Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG supplier

Large Image :  Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG

Product Details:

Place of Origin: China
Brand Name: Fortunemount
Model Number: MDVR-B1304WG

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 2 weeks based on sales forecast and 1 month without any sales forecast
Payment Terms: T/T ; 30% prepayment and balance to be paid before shipment
Supply Ability: 50 000 monthly
Delivery Terms: FOB Shenzhen
Contact Now
Detailed Product Description
Product Name: Mobile DVR Recorder Operating System: Multi-channel Real-time
Video Compression: H.264(Main Profile) Audio Compression: G.711A
Audio Input: 4 Channel Audio Input Audio Output: 1ch(200-3000mV,5K)



Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG



Features:

Special function:Mobile data,GPSdata,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc.

Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.

Playback quality:support 4ch D1 real-time record,multi-channel full real-time playback synchronously.

Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Display:support TV output,taking the lead in HD resolution technology.

Operation interface:similar to Windows operating style,  easy to get started with powerful mouse right-click function.

Network:Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.

Browsers:Support multiple web browsers (ie,chrome,firefox, safari)

Remote Access:With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.

Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.

Others:Perfect  circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

Ø 4channel Video Input

Ø support 1*SATA hard disks and 2*SD Cardtorage;(HDD Maximum 2T, 2*SD maximum 128G)

Ø support  Wifi

Ø not support 3G

Ø support  GPS



Specification:



Model

MDVR-B13043G

MDVR-B1304WG

system

Main processor

Hi3515

Operating system

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

System resources

support 16-bit true color graphical menu interface and mouse operation

interface

user interface

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(Main Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time

decode capacity

2ch D1 real-time

audio

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio compression

G.711A

Record

&

playback

bidrectional talk

supported

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

Storage

&

backup

search mode

Time/calendar/event/channel search

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

2.5'SATA,network

interface

backup mode

Network backup,USB,USB Burn

video input

4ch BNC

video output

1ch  (1.0Vp-p,75Ω)

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

4ch(uncompatible with mobile signal)

alarm output

no(support 1ch expansion)

net interface

no

PTZ control

One RS485 port

usb

One USB port

hard disk

One SATA port,max.2T

GPS

3.5mm audio interface

Mobile interface &

functions

GPIO

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc..

GPS Module

(alternative)

Built-in GPS module,support GPS data overlay,timing etc..



WIFI

Not supported

support RT3070 series module ,same port with USB,support auto registration and upload.







3G

(alternative)

Support EVDO,WCDMA,TD-SCDMA,support auto registration and upload;perfect narrowband transmission strategy,ensuring 3G network media transports steadily and fluently.

Not supported



others

support delay boot up/shut down

complement

player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera

Power consumption

<10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*158(width)*66(height)mm

weight

1.4kg

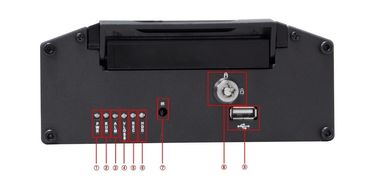

Front panel:



Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG



1,Power Indicator  2,Run Indicator 3,Alarm Indicator  4,Video Loss Indicator  5,Record Indicator

6,HDD Indicator  7,IR Receiver  8,HDD Lock  9,USB



Back  panel:





1,GPS  2,I/O  3,A/V  4,SIM  5,Power  6,3G/WIFI
