Industrial Stickers Poly Dome Graphic Overlays glossy / matt With 7 - color Silk Printing

China Industrial Stickers Poly Dome Graphic Overlays glossy / matt With 7 - color Silk Printing supplier
Industrial Stickers Poly Dome Graphic Overlays glossy / matt With 7 - color Silk Printing supplier Industrial Stickers Poly Dome Graphic Overlays glossy / matt With 7 - color Silk Printing supplier

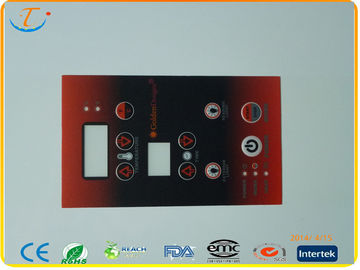

Large Image :  Industrial Stickers Poly Dome Graphic Overlays glossy / matt With 7 - color Silk Printing

Product Details:

Place of Origin: Dongguan China
Brand Name: TianTai
Certification: ISO9001:2008, SGS,Rohs
Model Number: TT-MS-038

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: USD 0.2~12
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or As per customer request
Delivery Time: Around 14-18 business days after payment
Payment Terms: T/T, Paypal or Western union
Supply Ability: 500000 Piece/Pieces per Month
Contact Now
Detailed Product Description

Industrial Stickers Poly Dome Graphic Overlays With 7 - color Silk Printing , RoHS





Description:

Graphic overlay:



  1.  perfect exterior
  2.  Autotype PC or PET overlay
  3.  Finish: glossy or matt.
  4.  Rear Adhesive: 3M467 or 3M468
  5.  Matching color:Pantone and RALcolor matching system.
  6.  SMD welding or by hand welding as per request
  7.  metal dome or polydome, assemble with silicone keypad is also available.
  8.  Withstand millions of cycles
  9.  Standard Tolerances:+/- 0.10inch(+/-0.25mm)






Polyester
Polycarbonate
Mechanical Resistance
Very high
Poor
Chemical Resistance
High
Poor
Thermal Resistance
Acceptable
Good
Abrasion Resistance
High
Acceptable
UV Resistance
Available
Not Available
Fatigue resistance
Superior (to 1,000,000 cycles)
poor
Dielectric Property
High
Good
flexure
great
poor
lifespan
Very good
Good (100,000 key cycles)
Range of surface finishes
Average
High
Transparency
Average to High
High
Thickness
.008” and thinner
.005” to .300” (and thicker)
Flammability
Not Available
Available
texture
limited
From fine mattes to course velvets

























Applications:


Our membrane switches are widely used in :

  •  Human Machine interface
  •  Automatic Control Equipment
  •  Telecommunications apparatus
  •  Telephone systems
  •  Household appliances
  •  Security systems
  •  Industrial controller
  •  Access control systems.....



Specifications:




wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at 40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree



1 material : PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality




Competitive Advantage:



1. Strong capability in R&D.

2. Professional staff in Production, management, and engineering, experienced in the industry for over 17 years.

3. Professional Sales team can provide quick service.

4 Low cost and top quality

5. Long lifespan,Our membrane switch is more than 100million times.

6. In-house 100% functionally tested before delivery.
7. Customized specification is available .
8. ISO9001:2008 certified company with three factories, Can provide one station resolution for client.
