Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation

Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation
Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation

Large Image :  Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation

Product Details:
Place of Origin: China
Brand Name: RL
Certification: ISO9001:2008
Model Number: RL
Payment & Shipping Terms:
Minimum Order Quantity: Different goods has different MOQ
Price: Different goods has different price
Packaging Details: As per customer’s requirement or our usual packaging way
Delivery Time: 20-30days
Payment Terms: T/T L/C or others
Supply Ability: sufficient supply
Detailed Product Description
Material: Polyester Origin: China
Packaged: Standard Export Package MOQ: According To Order
Delivery Time: 20-30DAYS Purpose: Rotary Screen Printing
High Light:

electric lawn mowers

,

small riding lawn mowers

Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation





Features



# Faster tensioning without damage to the threads;

# Improved fabric strength; Faster tension stabilization;

# Higher tension threshold and breaking point;

# Less tension loss during the stretching process; High acid resistance;

# Faster turnaround time from the screen room to the pressroom;

# Improved registration due to stable tension; Faster printing speeds; High corrosion.





polyester screening printing screen



polyester screen printing mesh ; 100 polyester mesh fabric



Our products have been exported to more than 30 countries and areas all over the world, such as the USA, England, Brazil, Kenya, Morocco, Russia, Indonesia, Singapore, Pakistan, Malaysia, Thailand, etc.
Our products focus on good quality and fast delivery, and our staff members focus on excellent service. We are your best choice. We will be your lifetime partner!

The details of products

With the monofilament of polyester woven , the polyester silk screen is made.

If needed, special size of Polyester Screens for Silk Printing can be made according to the clients' request , the requirement includes the color ,the mesh count ,the special diameter and the opening ,etc.







100% Polyester Material

Plain Weave, Low Elongation
Excellent Tear Resistance



Specifications



Polyester Screens for Silk Printing
Elasticity: low
ISO9001:2000
length: make to order
Mesh:25-460/inch





Specification

(cm)

Mesh Count (mesh/inch) Wire Dia. (um) Mesh opening (um)

Open Area

(%)

Suggestion Highest Tension N/cm
8T 20 350 900 52 66
10T 25 300 700 49 61
12T 30 250 580 48 58
15T 38 200 467 49 58
24T 60 120 297 51 52
32T 80 100 213 46 54
40T 100 80 170 46 37
43T 110 80 153 43 35
53T 135 64 125 44 40
56T 142 64 115 41 41
61T 156 64 100 37 41
64T 160 64 92 35 42
68T 175 64 83 32 40
72T 183 55 84 37 38
77T 195 55 75 33 33
80T 200 48 77 38 34
90T 230 45 72 42 30
100T 250 40 61 37 32
110T 280 40 52 33 34
120T 300 34 47 32 34
140T 350 34 37 24 33
150T 380 31 34 26 31
165T 420 31 25 17 31







Applications



polyester silk screen for Printing can be applied

1. to acid and alkali conditions for printing.

2. for electronics' printing: PCBs, membrane switches.

3. for the printing of CDs, DVDs, glasses, ceramics, etc.

4. for textile printing: T-shirts, high-end textiles, flatbed textiles





Polyester Mesh
Model

Specification

    (/cm)

Mesh count (mesh/inch)

Thread Diameter

  (um)

Mesh opening(um) Open Area(%) Thickness(um) Theoretic Ink Volume (cm3/m2)
PET7/1068 7 18 350 1068 56 693 389
PET8/941 8 20 300 941 57 594 338
PET10/743 10 25 250 743 55 495 274
PET12/686 12 30 140 686 68 277 189
PET12/578 12 30 250 578 48 495 239
PET14/489 14 36 200 489 50 340 169
PET15/443 15 38 200 443 47 340 160
PET16/461 16 40 140 461 58 238 139
PET16/404 16 40 200 404 44 340 151
PET16/356 16 40 250 356 34 425 145
PET18/385 18 45 150 385 51 255 131
PET18/357 18 45 180 357 44 306 134
PET20/399 20 50 80 399 69 136 93
PET20/380 20 50 100 380 62 170 105
PET20/333 20 50 150 333 47 255 120
PET20/304 20 50 180 304 39 306 120
PET21/319 21 54 140 319 48 238 114
PET22/356 22 56 80 356 66 136 90
PET24/320 24 60 80 320 63 136 86
PET24/301 24 60 100 301 56 170 95
PET24/282 24 60 120 282 49 204 99
PET24/263 24 60 140 263 42 238 100
PET24/253 24 60 150 253 39 255 100
PET28/263 28 70 80 263 58 136 79
PET28/244 28 70 100 244 50 170 85
PET29/214 29 74 120 214 41 204 83
PET30/203 30 76 120 203 39 204 80
PET32/236 32 80 64 236 61 109 67
PET32/221 32 80 80 221 53 136 73
PET32/202 32 80 100 202 44 170 75
PET32/183 32 80 120 183 36 204 74
PET34/184 34 86 100 184 42 170 71
PET36/188 36 90 80 188 49 136 66
PET36/178 36 90 90 178 44 153 67
PET36/169 36 90 100 169 39 170 66
PET39/191 39 99 55 191 60 94 56
PET39/183 39 99 64 183 54 109 59
PET39/176 39 99 71 176 50 121 61
PET39/168 39 99 80 168 45 136 62
PET39/149 39 99 100 149 35 170 60
PET43/160 43 110 64 160 51 109 55
PET43/145 43 110 80 145 41 136 56
PET47/150 47 120 55 150 53 94 50
PET47/141 47 120 64 141 47 109 51
PET47/135 47 120 71 135 42 121 51
PET51/134 51 130 55 134 50 94 47
PET51/119 51 130 71 119 39 121 47
PET53/127 53 135 55 127 48 94 45
PET53/118 53 135 64 118 42 109 45
PET53/112 53 135 71 112 37 121 45
PET56/117 56 142 55 117 45 94 42
PET56/109 56 142 64 109 38 109 41
PET59/109 59 150 55 109 42 94 40
PET59/100 59 150 64 100 36 109 39
PET61/103 61 155 55 103 41 94 38
PET61/95 61 155 64 95 34 109 37
PET64/96 64 163 55 96 39 94 36
PET64/88 64 163 64 88 32 109 35
PET68/97 68 173 55 87 36 94 34
PET68/79 68 173 64 79 29 109 32
PET72/89 72 183 45 89 42 77 32
PET7286 72 183 48 86 40 82 32
PET72/80 72 183 55 80 34 94 31
PET77/71 77 195 55 71 31 94 29
PET80/76 80 200 45 76 38 77 29
PET80/73 80 200 48 73 35 82 29
PET90/68 90 230 40 68 38 68 26
PET90/63 90 230 45 63 33 77 25
PET90/60 90 230 48 60 28 82 23
PET100/51 100 254 40 51 30 85 26
PET110/48 110 280 34 48 33 58 19
PET110/43 110 280 40 43 26 68 18
PET120/44 120 305 31 44 33 53 18
PET120/42 120 305 34 42 29 58 17
PET120/37 120 305 40 37 18 68 13
PET130/31 130 330 40 31 17 68 12
PET130/36 130 330 34 36 26 58 15
PET140/34 140 350 31 34 25 53 13
PET140/32 140 350 34 32 19 58 11
PET150/34 150 380 27 34 30 46 14
PET150/30 150 380 31 30 22 53 12
PET150/28 150 380 34 28 16 58 9
PET165/29 165 420 27 29 22 46 10
PET165/25 165 420 31 25 16 53 8

Remark:The above datas are theoretic ,please reference the actual datas if there it differs



shipping:
1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.



Packaging:

standard export packaging,with pvc bag and carton custome packing available at request





Order Guide



1.Inquiry-Professional quotation.

2.Confirm the price, lead time, artwork, and payment term etc.

3.Freedom sales send the Proforma Invoice with freedom seal.

4.Customers make the payment for deposit and send us Bank receipt.

5.Initial Production Stage-Inform the clients that we have got the payment, and will make the samples according to your request, send

 you photos or samples to get your approval. After approval, we inform that we will arrange the production &

 inform the estimated time of delivery.

6.Middle Production-send photos to show the production line which you can see your products are in. Confirm

 the estimated delivery time again.

7.End Production-Mass production products photos and samples will send to you for approval. You can also

arrange the third party Inspection.

8.Clients make payment for balance and Freedom Ship the goods. Also we can accept payment term of

Balance against B/L Copy or L/C. Inform the tracking number and check the status for clients.

9.Order can be said "finish" when you receive the goods and are satisfied with them.

10.Feedback to Freedom about Quality, Service, Market Feedback & Suggestions. And we can do better.



Shipping
1. If you are urgent, we will send to you by DHL, UPS, FedEx or TNT.
2. If the products are very heavy, we will send to you by air or by sea.





Polyester screen

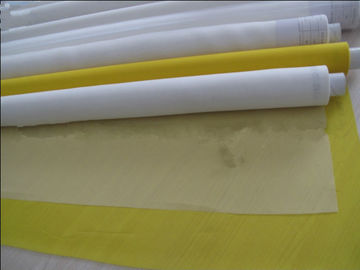

Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation 0

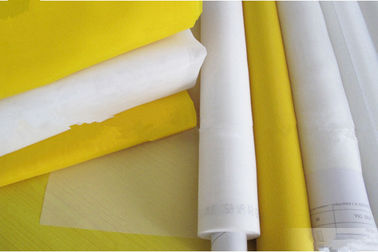

Polyester Highly Tough Strong Tensile Rotary Screen Printing , Low Elongation 1
