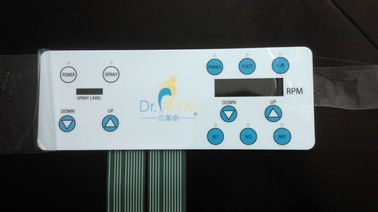

Custom Tactile Membrane Switch 3M Adhesive Red Blue Bi-color LED

Custom Tactile Membrane Switch 3M Adhesive Red Blue Bi-color LED
Custom Tactile Membrane Switch 3M Adhesive Red Blue Bi-color LED

Large Image :  Custom Tactile Membrane Switch 3M Adhesive Red Blue Bi-color LED

Product Details:
Place of Origin: China
Brand Name: TianTai
Certification: ISO9001:2008, SGS,Rohs
Model Number: TT-MS-158
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: USD 0.2~12
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or As per customer request
Delivery Time: Around 10-18 business days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 Piece/Pieces per Month
Detailed Product Description
Type: Membrane Switch Color: Pantone And RAL
Certification: ISO,RosH,SGS,REACH Color: Pantone And RAL
Material: Autotype PET , PC Certification: ISO,RosH,SGS,REACH
Size: Custom Design Material: Autotype PET , PC
Connector: Female/male/ZIF Size: Custom Design
Sample Time: 3-6 Days Connector: Female/male/ZIF
Delivery Time: 10-20 Days Sample Time: 3-6 Days
Delivery Time: 10-20 Days
High Light:

membrane switch panel

,

custom membrane switch

Detailed Product Description




Custom Tactile Membrane Switch 3M Adhesive Red Blue Bi-color LED







Quick Detail:



& Total thickness : 1.0 mm

& First layer : Autotype F150

&  Second layer : adhesive DT 6025

& Third layer : metal dome protector mylar 0.1 mm

& Forth layer : FPC cooper foiled circuit or Conductive silver circuit 0.125mm

& Fifth layer : 3M467 back adhesive

& Led color : green,red ,yellow,white and bi-color LEDs

& Pitch : 2.54 mm

& Pin : according to product

& Push force : according customer need

& Main electronic compents : metal dome

& Operating condition : 40°c,90%~95%,for 240 hours

& Life span : 1 million times





Description:



  1.  perfect exterior.
  2.  Autotype PC or PET overlay.
  3.  Finish: glossy or matt.
  4.  Rear Adhesive: 3M467 or 3M468.
  5.  Matching color:Pantone and RALcolor matching system.
  6.  SMD welding or by hand welding as per request.
  7.  metal dome or polydome, assemble with silicone keypad is also available.
  8.  Withstand millions of cycles
  9.  Standard Tolerances:+/- 0.10inch(+/-0.25mm).





 Applications:



Our membrane switches are widely used in :

  •  Human Machine interface
  •  Automatic Control Equipment
  •  Telecommunications apparatus
  •  Telephone systems
  •  Household appliances
  •  Security systems
  •  Industrial controller
  •  Access control systems.....





Specifications





wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at 40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree


1 material : Autotype PET /PC
2 adhesive: 3M467 & 3M468  or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality





Why choose us?



1. Manufacturer over 10 years' experience.



2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers.



3. OEM and ODM is available, can faster churning out your innovative products.



4. Materials are PC,PET and PE, non-toxic, harmless, eco-friendly.



5. If want to import some membrane switch to test the market, we can lower the MOQ.



6. The  Everychina.com Recommended Supplier.



7. We are specialized ,can help to design and make good suggestion.



8. Quality is our culture,,With us Your money in safe Your business in safe Your success is our Super Goal,,Our honest will touch Your Heart.
