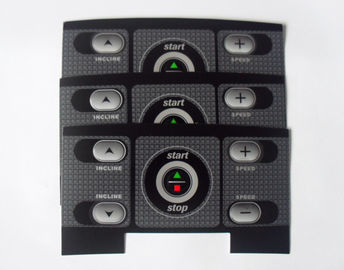

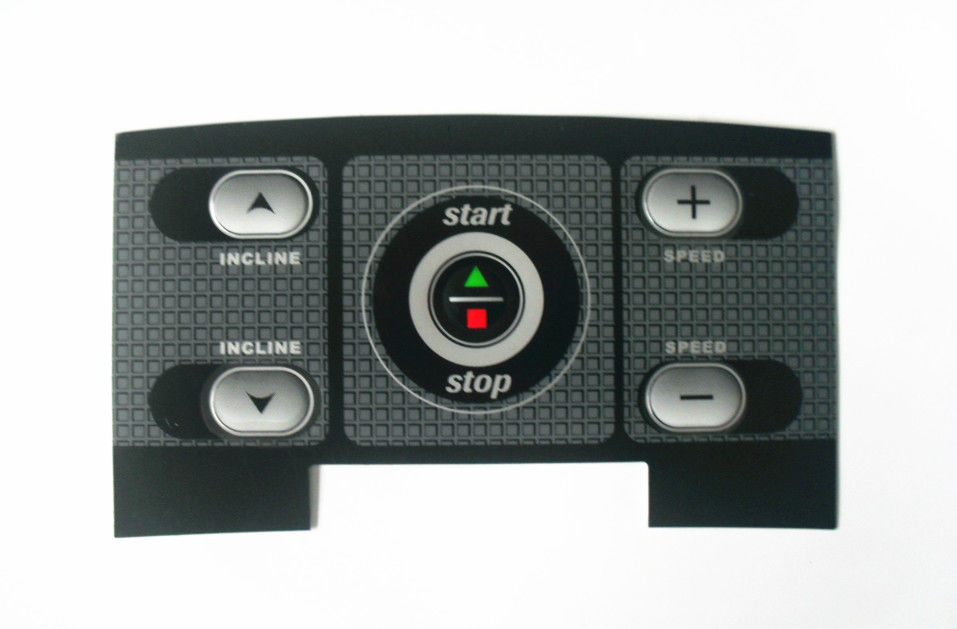

Customized Standard Push Button Texture Membrane Panels With 3M Adhesive

China Customized Standard Push Button Texture Membrane Panels With 3M Adhesive supplier

Large Image :  Customized Standard Push Button Texture Membrane Panels With 3M Adhesive

Product Details:

Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Contact Now
Detailed Product Description



Customized Standard Push Button Texture Membrane Panels With 3M Adhesive





Quick Detail:



> Overlay Materials: The most commonly used base materials are polyester and polycarbonate.

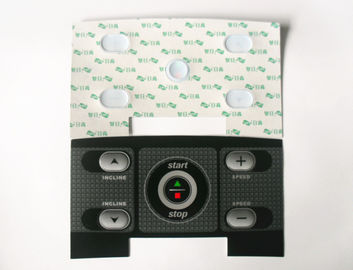

> Rear Adhesive: 3M 467MP, 3M 468MP, etc.

> Standard Tolerances: +/-.010 inch.

> Matching color: Pantone and RAL color matching system.

> Button : embossed



·

Description:



> Push force : 280 g

> Storage Temperature: -40°C (-40°F) to +70°C (158°F).

>  Storage Altitude: Sea level to 35,000 feet.

> Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be designed to operate in most environments.

> Humidity: No delamination after 24 hours at 80°C and 90%RH.





 Applications:



1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .


C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on



3. Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome







Specifications





Material Thickness

0.125m to 0.8mm

Sheet Sizes

Custom or standard

Surface Condition Options

Clear | Matte | Brushed | Velvet | Suede | UV Clear | Hard Coating (Scratch Resistant)

Adhesives

Full range of adhesives to meet demands of:

• Full or selective adhesive coverage

• Low/High surface energies

• Textured surfaces

• Smooth surfaces

• Rough surfaces

• Adhesive with spacers included

• Pressure sensitive backings

Finishes

Elastomer | Poly-doming | Protective film over-laminates

Display Windows

Clear| Colored | Lenses





Why to choose Shenzhen boerzhuo membrane switches?





>   No need to worry about the qualities (We take response if our reason lead failure ).

> Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..

> We are specialized ,can help to design and make good suggestion .

> Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.

 > We can accept small quantity order and offer competitive price.

> Strict quality inspection ,100 %  function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.





Finishing Operations



Laminating

Materials can be overlaminated with various films such as polyester, polycarbonate, or vinyl to provide protection, appearance or effect. Pressure sensitive adhesives can be laminated to films or sheets to facilitate mounting functionality for the finished part. We can put together multiple layers of different materials to create insulators, shielding components or custom constructions for special applications. Copper and aluminum foils are examples of products we utilize for those special needs.

Slitting

Slitting is done to create a back or front slit in a protective liner to provide the crack and peel effect for pressure sensitive products. Slitting is also used as a lower cost alternative to pull tabs on pressure sensitive adhesive-backed products. Power shearing and back slitting, for example, are alternatives to tooling and diecutting. Back slits on parts are also advantageous for strategic part placement where only part of the liner is removed and the part can be handled or positioned easily.

Die-Cutting

Diecutting by means of using Steel Rule Dies is an industry standard for cutting shaped parts or parts with interior cutouts, tabs, or large volume. All of our roll labels are produced using tooling, but in many cases, common die shapes or sizes can use common tools. In our sheet-fed products we utilize Clamshell type diecutters.

Powercutting Shearing

Powercutting is the use of a guillotine power shear with a digital readout controller to semi precision cut films, thin gauge sheets and layered constructions into square or rectangular shapes. Our largest production cutter is 54" wide, but we do special cutting up to 12' for products such as banners and sign inserts. Shearing is our cutting process for rectangular sheet products in gauge metals.



A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
