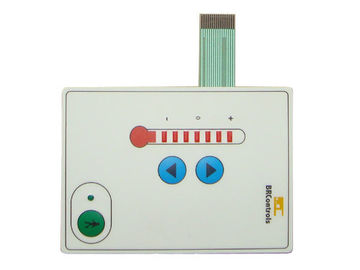

Silver Paste Custom Membrane Switch Keyboard 0.05mm - 1.0mm Environment Friendly

Silver Paste Custom Membrane Switch Keyboard 0.05mm - 1.0mm Environment Friendly
Silver Paste Custom Membrane Switch Keyboard 0.05mm - 1.0mm Environment Friendly Silver Paste Custom Membrane Switch Keyboard 0.05mm - 1.0mm Environment Friendly

Large Image :  Silver Paste Custom Membrane Switch Keyboard 0.05mm - 1.0mm Environment Friendly

Product Details:
Place of Origin: Dongguan,China
Brand Name: Foundation
Certification: ISO9001:2008, SGS,Rohs
Model Number: HC-BMS-420
Payment & Shipping Terms:
Minimum Order Quantity: 150Pcs
Price: Negotiable
Packaging Details: Polybag per pcs,50pcs cartoon
Delivery Time: 15-20days
Payment Terms: T/T,L/C
Supply Ability: 100000piece/pieces per Month
Detailed Product Description
Materilal: V200 Adhesive: 3M
Color: Green And White
High Light:

Membrane Switch Panel

,

Custom Membrane Switch

Embossed Silver Paste Backlight Membrane Switch Keypad With Metal Dome





Description:


1) Membrane Switch with windows

2) Silicone keypad

3) Silk Screen Printing

4) perfect exterior

5) Over 1 million life cycles





Commercial terms:



MOQ: 150pcs

Payment Terms: T/T or L/C

Mold Charge: 100% in Advance

Sample Time: 9-10 days after drawing approval.

Lead Time for production: 15-22 days after sample approval

Material : PET /PC
Adhesive: 3M467 & 3M468 or as per request
High life time :>1million times

Pass:ISO9001:2008 RoHS.SGS
High quality





Applications:



Our membrane switches are widely used in:

  • Medical Equipment
  • Telecommunications apparatus
  • Telephone systems
  • Household appliances
  • Security systems
  • Industrial controls





Specifications:



wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree



Silver Paste Custom Membrane Switch Keyboard 0.05mm - 1.0mm Environment Friendly 0

Company Advantage:



  1. Top managers are experienced in the same field for many years.
  2. Professional staff and workers.
  3. Strong R&D cabability
  4. Quick Delivery
  5. Competitive price
  6. Two factories are available for large orders
  7. Expert sales team and good customer service.





The main technical parameters



1.Contact resistance: <1Ω /cm
2.Insulation resistance: <100MΩ (250V DC)
3.operating voltage: ≤ 50VDC
4.working current: 25- 100mA,0-30V DC
5.reliability, service life:<1 million times
6.operating temperature: -40 ℃ ~ +70 ℃
7.Operating humidity:when40°C,<98%RH
8.spring time: ≤ 5ms
9.substrate voltage: 2000V DC
