Backlit Membrane Switch Thin Film Concave-Convex Colorful Effect

Backlit Membrane Switch Thin Film Concave-Convex Colorful Effect
Backlit Membrane Switch Thin Film Concave-Convex Colorful Effect Backlit Membrane Switch Thin Film Concave-Convex Colorful Effect

Large Image :  Backlit Membrane Switch Thin Film Concave-Convex Colorful Effect

Product Details:
Place of Origin: Dongguan ,China
Brand Name: Foundation
Certification: ISO9001:2008, SGS,Rohs
Model Number: HC-BMS-557
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Polybag per piece,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C, Western Union
Supply Ability: 100000piece/pieces per month
Detailed Product Description
Material: F150 Adhesive: 3M
Restitence: <100M
High Light:

graphic advertisement

,

Membrane Switch Panel

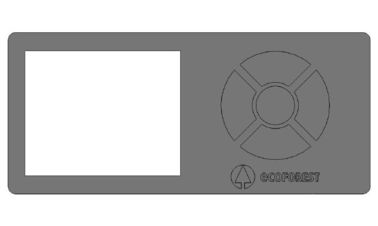

Thin Film Concave-Convex Backlit Metal Dome Membrane Switch With Lcd Window





Quike Detail



1.membrane switch with back board

2.membrane switch with 5 rim embossing button

3.membrane switch with LCD window



Description:


1) Membrane Switch with windows

2) Touch feeling keys with embossing

3) Silk Screen Printing

4) Over 1 million life cycles

5) Metal dome or silicone keypad is also available.



In need of special light sources (eg: no shadows, no dizzying, brightness uniformity and neon effect ......),  in with the environment needs (eg: a narrow space, complex shapes, temperature and power consumption  constraints, vibration under the environment ......), the illusion is impossible to make up the traditional  cold light source.

In addition, for printed mark, instructions, election propaganda, body decoration and interior design,  photo or text on backlit transparent advertising material, EL cold light is the best light materials





Specifications:



wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree





Company Advantage:

  1. Top managers are experienced in the same field for many years.
  2. Professional staff and workers.
  3. Strong R&D cabability
  4. Quick Delivery
  5. Competitive price
  6. Two factories are available for large orders

Expert sales team and good customer service.







Applications:



1. The backlight applications: all kinds of electric computers, laptops, handheld game consoles,  telephones, electronic organizers, electronic dictionaries, audio equipment, control panels, microwave  oven control panel, fax machines, copiers, watches ...... etc.

2. Automotive: Car instrument panel, warning lights, vehicle exteriors, decorative door bar, third brake  light ...... etc.

3. Architecture and interior applications: elevator floor marking, labeling instructions escape, decorative  wall lights, night landscape decorative building, interior decorating

4. Safety, lifesaving: Night police, traffic police wearing cold warning clothing, safety signs at night,  lifesaving instructions, ships, docks, etc.

5. Military and aerospace applications: military map backlighting, backlit instruments, airport runways at  night riverboat instructions nighttime identification instructions, ground guide
