CE FCC ROHS Vandal resistant Metal Keypad / Backlight atm keypad

China CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad supplier
CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad supplier CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad supplier

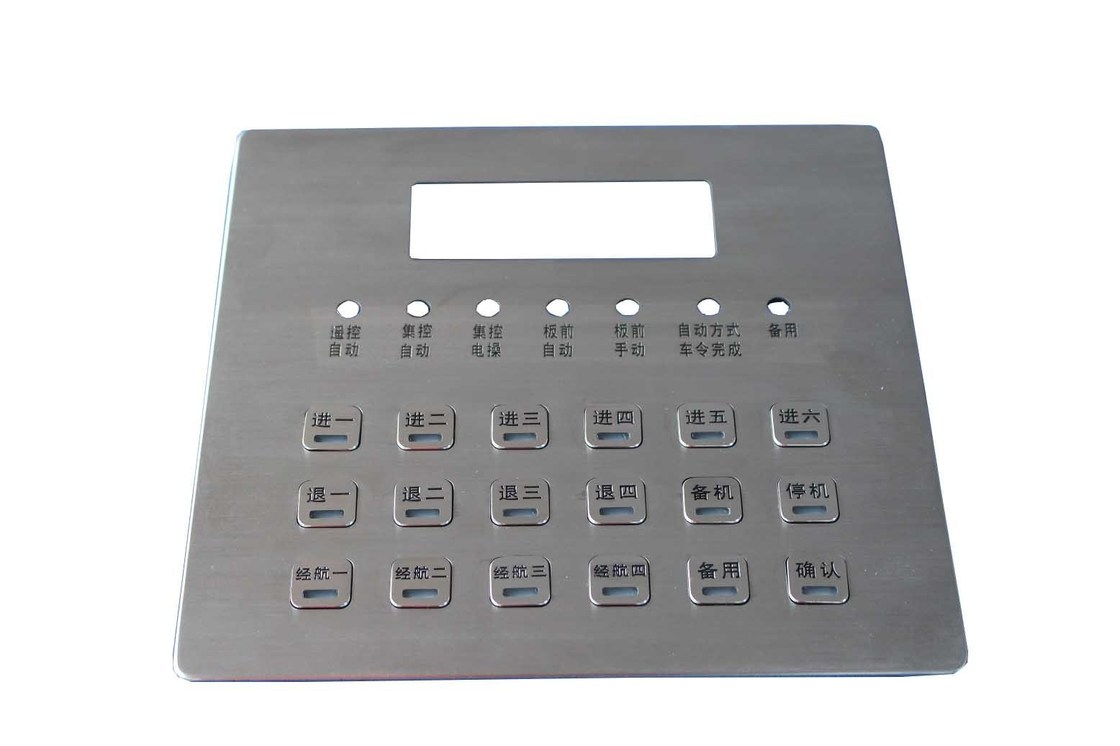

Large Image :  CE FCC ROHS Vandal resistant Metal Keypad / Backlight atm keypad

Product Details:

Place of Origin: Shenzhen,China
Brand Name: IKB-MKB
Certification: CE,FCC,ROHS,IP65,IP68,ESD
Model Number: K-TEK-B147KP-AC-18-BL

Payment & Shipping Terms:

Minimum Order Quantity: + 1 pc
Packaging Details: Each keyboard to one box,several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance. or 50% deposit in advance, the rest 50% to be paid before delivery.
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Dimension: 147.00mm X 80.00mm (Front Panel) Interface: USB, PS/2, RS232
Key Travel: 0.45mm Short Stroke Material: 304 Stainless Steel
Colour: Black Backlight: Green
Key Number: 18 Keys Mounting: Top Panel Mounting



18 keys dynamic waterproof backlit customized metal numeric keypad





DIMENSIONS: 147.00mm x 80.00mm (Front Panel)


1. Waterproof/dirt-proof execution according to degree of protection IP65/IP54, waterproof and dirt proof encapsulation with unique membrane.


2. Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.



3. 18 actuator on the keypad, Any keys can be re-defined per customers’ requirements.


4. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.


5. Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.

6. COMMUNICATION PARAMETER



7. OS: All windows, Linux, Unix, Mac OSX


8. Standard PC/AT keyboard interface.



9. With firm tactile key feel, short travel switches, with unique double over-travel protection.





Specifications:



MECHANICAL DATA Actuation Force: 1.2N +/-0.1N (pressure point).
 Key Travel: 0.45mm.
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel.
Actuator/keys materials: stainless steel.
Dimensions: 147.00mm x 80.00mm (front panel)
G.W: 1.20kg.
ENVIRONMENTAL ADAPTABILITY

Switching material: Gold-on-Gold.
Power supply voltage: 5V DC.

Power Consumption: Under 300mW for operation, under 200mW for non-operation.
Electrical lifetime: > 5 years.

EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Communication interface: PS2, or USB available.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C.
Storage temperature:-30°C to +70°C.
Operating RH: 30~90%.
Atmospheric pressure: 60~106Kpa.

RELIABILITY RoHS Compliant, CE and FCC
Protection Level: IP65(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations.
MTBF >50000H MTTR <30min.

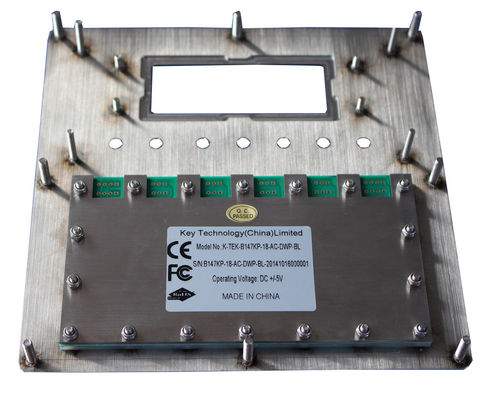

Actual Photo:



CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad

CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad





Our Office:



CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad





Our factory:



CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad

CE  FCC  ROHS Vandal resistant  Metal Keypad / Backlight atm keypad
