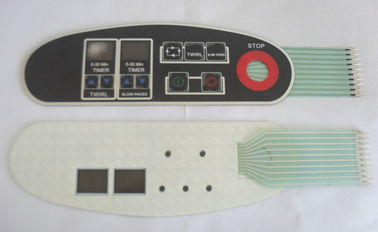

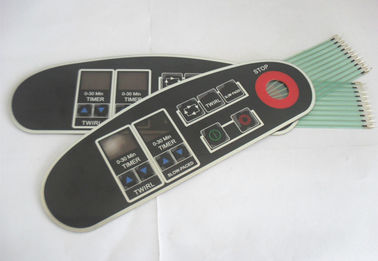

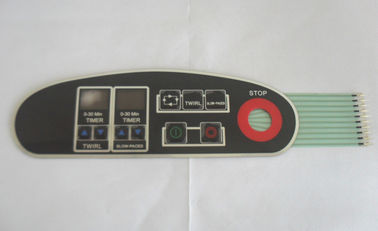

3M Waterproof Flat Button Polycarbonate Graphic Overlay For Membrane Keyboard

China 3M Waterproof Flat Button Polycarbonate Graphic Overlay For Membrane Keyboard supplier

Large Image :  3M Waterproof Flat Button Polycarbonate Graphic Overlay For Membrane Keyboard

Product Details:

Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Contact Now
Detailed Product Description



3M Waterproof Flat Button Polycarbonate Graphic Overlay For Membrane Keyboard





Quick Detail:



> Total thickness : 1.0 mm

> First layer : DF F150

>  Second layer : adhesive DT 6100

> Fifth layer : adhesive 3M467

> Led color : green,red ,yellow and white single color

> Push force : 280 g

> Main electronic compents : LED , metal dome

> Operating condition : 40°c,90%~95%,for 240 hours

> Life span : 1000000 times





Description:



> Surface :Matte

> Overlay button: embossed 0.35 mm

> Top circuit: Φ 8 mm metal dome

> Bottom circuit : flat

> Window : no

> Led window : no color coated translucent

> Matching color: Pantone and RAL color matching system.





 Applications:



1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .




Specifications



1. PET graphic overlay keypad
2. Second surface pringting
3. Scratch resistance
4. Blue LCD window
Beyond 15 years production

graphic overlay keypad



Overlay Materials: The most commonly used base materials are polyester and polycarbonate.

Rear Adhesive: 3M 467MP, 3M 468MP, etc.

Standard Tolerances: +/-.010 inch.

Matching color: Pantone and RAL color matching system.

Environmental

·         Storage Temperature: -40°C (-40°F) to +70°C (158°F).

·         Storage Altitude: Sea level to 35,000 feet.

·         Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be designed to operate in most environments.

·         Humidity: No delamination after 24 hours at 80°C and 90%RH.



A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
