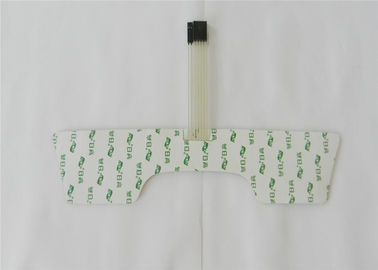

3M Adhesive Waterproof Membrane Switch

Certification
Good quality Molded Case Circuit Breakers for sales
Good quality Molded Case Circuit Breakers for sales
Excellent quality and fast delivery.

—— Victor

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I'm Online Chat Now

3M Adhesive Waterproof Membrane Switch

China 3M Adhesive Waterproof Membrane Switch supplier
3M Adhesive Waterproof Membrane Switch supplier 3M Adhesive Waterproof Membrane Switch supplier 3M Adhesive Waterproof Membrane Switch supplier

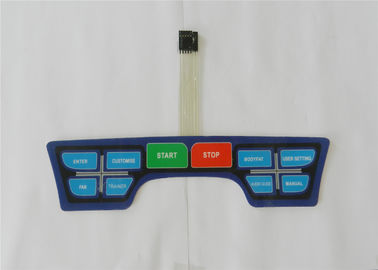

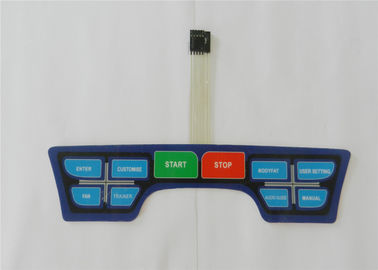

Large Image :  3M Adhesive Waterproof Membrane Switch

Product Details:

Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Contact Now
Detailed Product Description

3M Adhesive Waterproof Membrane Switch With LEDs





Quick Detail:





> Total thickness : 1.25 mm

> Surface : glossy

> Window : no

> Graphic overlay material : 0.188 mm glossy PET



Description:





> Surface : glossy

> Overlay button : flat

> Color : 4

> Led window : without



 Applications:

1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .


C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on



2. Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome







Specifications



Technical Parameters







1. Electrical



Maximum Circuit Rating: 35V(DC),100mA,1W



Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)



Insulation Resistance: 100MΩ 100V



Dielectric: 250 Vrms (50~60Hz 1min)



Contact Bounce: < 5ms



Life:   Flat: ≥ 5million times



          Tactile: ≥ 1 million times



           Dura switch: ≥ 10million times







2. Mechanical



Actuation Force: Flat: 57~284g(2~10oz)



                             Tactile: 170~397g(6~14oz)



Switch Height:  Flat: 0.1~0.5mm



                            Tactile: 0.6~1.5mm







3. Environment



Operation Temperature: -40~+80 Degree Centigrade



Storage Temperature: -40~+80 Degree Centigrade



Humidity: 90%~95%, 240 hours



A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.





Why to choose Shenzhen boerzhuo membrane switches?

1.     No need to worry about the qualities (We take response if our reason lead failure ).


2.Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..


3.We are specialized ,can help to design and make good suggestion .

4. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.

 5. We can accept small quantity order and offer competitive price.

6. Strict quality inspection ,100 %  function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.
