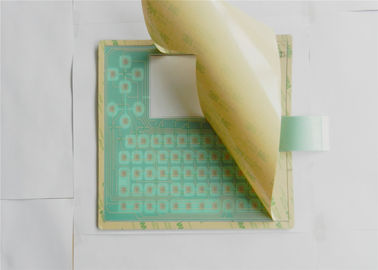

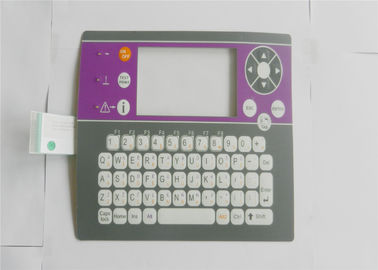

Custom PET Waterproof Membrane Switch Keypads Glossy For Measuring Device

China Custom PET Waterproof Membrane Switch Keypads Glossy For Measuring Device supplier

Large Image :  Custom PET Waterproof Membrane Switch Keypads Glossy For Measuring Device

Product Details:

Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Contact Now
Detailed Product Description


Custom PET Waterproof Membrane Switch Keypads Glossy For Measuring Device


Quick Detail:

> Circuit material : PET

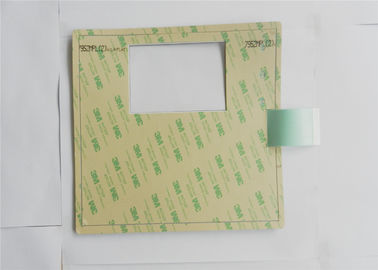

> Rear adhesive :  3M 467
> Button style : embossed
> Circuit keypad style : embossed


Description:

> Surface :glossy
> Top circuit: Φ 8 mm metal dome
> Overlay button: embossed 0.35 mm
> Bottom circuit : embossed
> Led window : no color coated translucent



Specifications


Size

2.8" to 22"

Constrcution

 Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating

 Operating Force

 10g~100g

 Chattering

 ≤12ms

 Surface Hardness

 Moths 3

 Life Time

 More than 1 million touches in one location without failure

 Transparency

 ≥80%

Working Voltage

5.0V

Circuit grade

DC5V 1mA

Insulation impedance

≥20MΩ(25V DC)

Linearity

≤1.5%

 Operating Temperature

 -30°C to 80°C

 Storage Temperature

 -40°C to 90°C

 Operating Humidity

 20%RH ~ 90%RH

 Storage Humidity

 10%RH ~ 90%RH

 Warranty

 1years

No noted size common
differenc

±0.20



Applications:

1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .


C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on
A: What’s the lead time for sample and mass order  ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.


2. Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome
