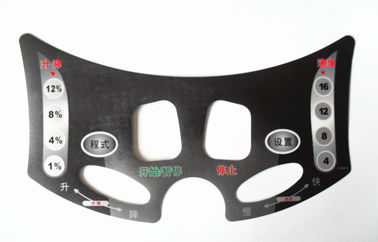

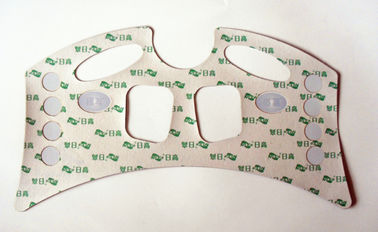

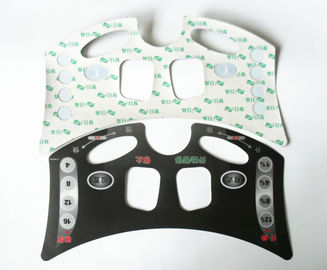

PET LED Waterproof Membrane Switch Overlay Panel With 3M Adhesive

PET LED Waterproof Membrane Switch Overlay Panel With 3M Adhesive
PET LED Waterproof Membrane Switch Overlay Panel With 3M Adhesive

Large Image :  PET LED Waterproof Membrane Switch Overlay Panel With 3M Adhesive

Product Details:
Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-29
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Detailed Product Description
High Light:

single membrane switch

,

custom membrane switch


PET LED Waterproof Membrane Switch Overlay Panel With 3M Adhesive


Quick Detail:

> Surface : mate
> Window : no
> Graphic overlay material : 0.15 mm  texture PET
> Circuit material : PET
> Rear adhesive :  3M 467


Description:

> Circuit crossing : yes
> Conductive side :top side conductive
> Tolerance:0.05 mm
> Water proof class : IP 67






 Applications:

1 . Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome

2. Used for :

A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on



Specifications

Tactile Membrane Switch Performance:


Certification

ISO9001:2008, ISO14001:2008& RoHS.

Components:

LED, metal domes, connector and circuit, all these can be designed and made according to customer requirements.

Electronic characteristics

Circuit rating

35V(DC),100mA,1 W

Contact resistance

10Ω - 500Ω(According the trace length and materials to confirm)

Insulation resistance

>100MΩ 250V(DC)

Contact bounce

≤5ms

Dielectric withstand

250VRms(50 - 60Hz/1 min)

Life expectancy

flat type≥5 million times, tactile type:≥1 million times

Mechanical Properties

Operating pressure

flat type 57-284g (2-10 Oz),tactile type 170-397g (6-14 Oz)

Switch stroke

flat type 0.1 - 0.5mm, tactile type 0.6 - 1.5mm

Environmental parameters

Operating Temperature

-20°C - +80°C

Storage temperature

-40°C - +85°C

Humidity

40°C,90%-95%,240 hours



Tactile Membrane Switch advantages:


Appearance

Beautiful, bright in color

Design

Small size, light weight, thin thickness, various types of products can be designed according to customer requirements.

Feature

Abrasion resistant, Tightness is good, moisture-proof, dust-proof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quake proof.

Quality

In-house 100% functionally tested.

Life expectancy

High lifespan, different types of membrane switch is more than 1 million times.

Operation

Easy to operate, intuitive, safe and reliable, Installation and connection convenience.
