OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive

China OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive supplier

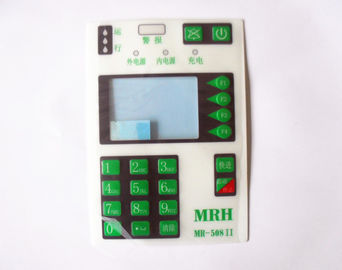

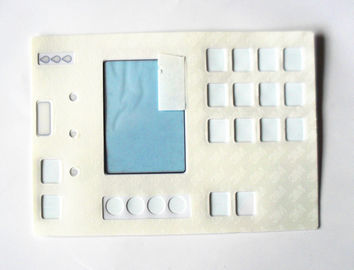

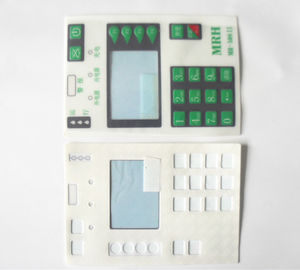

Large Image :  OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive

Product Details:

Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Contact Now
Detailed Product Description
Membrane Switch: Waterproof



OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive





Quick Detail:



> Total thickness :0.82 mm

> Surface : glossy

> Window : glossy

> Graphic overlay material :  0.188  glossy PET

> Circuit material : PET

> Rear adhesive : 3M 467

> Button style : embossed





Description:



> Color : 4

> Led window : without

> Circuit crossing : yes

> Conductive side :top side conductive

> Tolerance:0.05 mm

> Water proof class : IP 67







Specifications



1. LED metal dome membrane panel
2. PET/PC material
3. Waterproof
4. Scratch resistant



Beyond 15 years production experienc



1.Environment Conditions



Item

Value

Operating Temperature & Humidity

-20°C - +70°C,< 90 %RH

Storage Temperature & Humidity

-30°C - +70°C,< 90 %RH

ESD protection

air +/-10KV, touching +/-5KV

Falling ball(1.1mm tempered glass)

50g(ball),1m

Static pressure(1.1mm tempered glass)

25KG

Surface hardness

>7H

Transmittance

>85%

Using durability (Pen Sliding test)

10 Million times





2. Electrical characteristics:



Item

Value

Supply voltage

2.8V~5V

Current consumption

Active Mode

Normal Mode

Sleep Mode

Power Supply Ripple

100mv P-P max

Supports a maximum resolution

2560X1408

Interface

I2C,USB

response time

20ms

Power Supply rise time

8ms Max

Linearity

< 1.5%





3.Touch function:



Item

Value

Drag, circle, slide, soft keys

OK

Multi-touch

Support up to 10 fingers

Gesture recognition

Enlarge, reduce, Rotate

keys analyzed additionally

Sliders, wheels, fierce action, long press





Application:



TV remot control.

Air conditoner control panel

Microwave oven panel

Medical (Diagnostic and Therapeutic)

Exercise Equipment

Test and Measurement

Automotive

Industrial Automation Equipment

Home Therapy and Patient Monitoring





Type of Switch:



Non tactile

graphics

Tactile with stainless steel domes

Tactile with poly domes on the circuit



Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.

A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
