Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System

China Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System supplier
Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System supplier Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System supplier Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System supplier

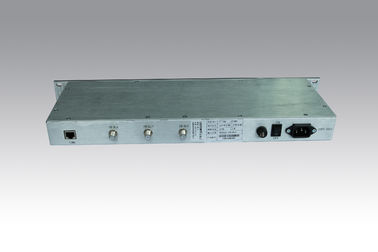

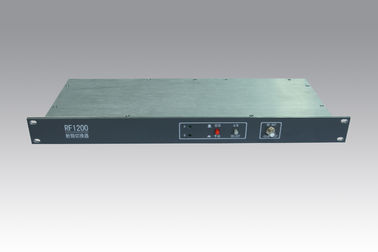

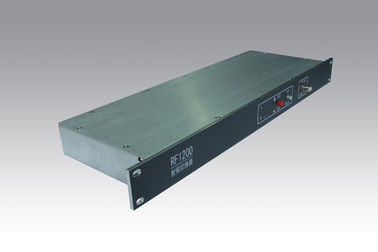

Large Image :  Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System

Product Details:

Place of Origin: China
Brand Name: LOOTOM
Certification: CE,ROHS
Model Number: RF 1200

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 5-10 days
Payment Terms: L/C,T/T,PAYPAL
Supply Ability: 50 Piece/Pieces per Month
Contact Now
Detailed Product Description
Bandwidth: 862/1000MHz Struction: 1U
Power Supply: 220V RF Switching Time: <20 Ms
Input Level Range: Input Level Range DBuV



 Indoor 1U Structure RF 1200 Switch For 1550 nm, 1310 nm Ring - Network System



Overview



RF1200 RF switch module with two path RF signal input ,one path RF signal output are widely used in the 1550 nm, 1310 nm ring-network system.Users can set the switching threshold.with two path RF input signal detection and judgment, if radio frequency signal level is lower than or exceeds the threshold, the switch will set to switch on its own. In the case of two way RF signals are normal,products support switching manually  RF channel , and switching on the front panel or remote network management forcefully. At the same  time ,remote network management provides a real-time monitoring.



Features

  •  Indoor 1U structure, Bandwidth:5 ~ 1000 MHZ
  •  A and B channels can be switched automatically and manually, which improves the  reliability of the network
  •  Users can set switch threshold
  •  Excellent in-band flatness and reflection loss
  •  Adopting aluminum case, drawing surface oxidation, high shielding factor
  •  Open network management meets the national NM standard, the SCTE HMS NM  standards and IEC NM standards



Technical parameters



No

Item

Unit

Parameters

1

Frequency range

MHz

5~862/1000MHz

2

Input reflect loss

dB

≥16

3

Output reflect loss

dB

≥16

4

Isolation degree

dB

≥70

5

Isolation degree of in and out ports

dB

≥70

6

Insertion loss

dB

≤2.0

7

Flatness

dB

±0.75

8

RF switching time

ms

<20

9

RF input impedance

Ω

75

10

Input level range

dBuV

96~106(59 paths PALanalog RF signal)

11

Power supply

V

AC 220V 50Hz

12

Operating temperature

-25~+65

13

Storage temperature

-30~+70
