Product Details:
Payment & Shipping Terms:
|
| Input: | 100-240Vac | Output: | 5V DC / 40A |
|---|---|---|---|
| Output Power: | 200W | Size: | 212*58*29mm |
| High Efficiency: | 90% | Power Factor: | >0.95 |
| High Light: | high power switching power supply,single output switching power supply |
||

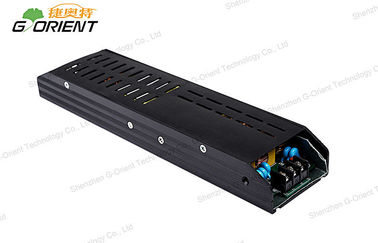

Isolated Switch Power Supply 200W 5V / 40A with High Power Factor 0.95
Features:
* Synchronous rectification,high power factor>0.95
* High efficiency up to 90%
* Low output ripple and noise,high reliability
* With over-current/over-voltage/short-circuit/over-power protection
* Ultra-low start up temperature -40℃
* 2 years warranty
Specifications:
|
Switching power supply |
NHP200-5-A |
|
|
OUTPUT |
DC Voltage |
5V |
|
Current Range |
0~40A |
|
|
Rated Current |
40A |
|
|
Rated Power |
200W |
|
|
Ripple & Noise(max.) |
<200mVp-p |
|
|
Regulation |
≦+/-3% |
|
|
Leakage current |
≦3.5mA |
|
|
INPUT |
Voltage Range |
100-240V AC |
|
Frequency Range |
47-63Hz |
|
|
Efficiency(Typ.) |
90% |
|
|
Environment |
Storage Temperature |
-40 ~ +85℃ |
|
Operaing Temperature |
-40 ~ +80℃ |
|
|
Relative Humidity |
10%-95% |
|
|
Cooling |
Natural convection |
|
|
Safety |
Safety standards |
CE |
|
Withstand Voltage |
Input-output withstand vol. |
3000Vac/10mA/1min |
|
Input-FG withstand vol. |
1500Vac/10mA/1min |
|
|
Output-FG withstand vol. |
500Vac/10mA/1min |
|
|
Others |
Dimension |
212*58*29mm (L*W*H) |
|
Packing |
|
|
Competitive Advantage:
* Ultra-thin 30mm
* Ultra-low start up temp.(- 30℃)
* synchonous rectification
* High efficiency up to 85%
* CE / ROHS / FCC approval
* Small size,ultra-light and easy to install
* Protections:Short circuit / Overload / Over voltage / Over temperature
Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
Applications:
1. Electrical equipment, Instrumentation;
2. Digital and electronic products;
3. Advisement player
4. LED display,LCD TV, LED TV
5. Display screen,LED video wall
6. Communications and security products.
