Rubber EPDM Cold Shrinkable Waterproof Cable Joints IP68

China Rubber EPDM Cold Shrinkable Waterproof Cable Joints IP68 supplier

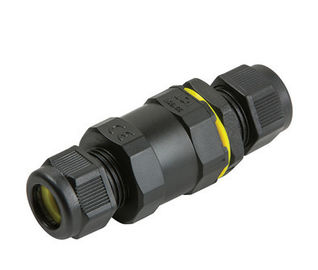

Large Image :  Rubber EPDM Cold Shrinkable Waterproof Cable Joints IP68

Product Details:

Place of Origin: Zhejiang,China
Brand Name: JIELI
Certification: CE,UL,VDE

Payment & Shipping Terms:

Minimum Order Quantity: 2000 pieces
Price: Negotiate
Packaging Details: 100pcs/bag,plastic bag packed in carton or according to the customers' request
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 peiecs per day
Contact Now
Detailed Product Description
Size: PG7-48,M12 X 1.5 - M63 X 1.5 Test Report: IP68,RoHS,REACH
Description: Plastic Waterproof Cable Joint PG Type Specification: 40(height)*20(aperture)mm
Material: Nylon Plastic (PA66)





Rubber EPDM Cold Shrinkable Waterproof Cable Joints IP68





Description

VOSLUN RUBLS-EPDM a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre-stretched condition. The core is removed after the tube has been positioned for installation over an in line connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber, which contains no chlorides or sulphurs. Various diameter sizes will cover a range of 1000 volt cables, copper and aluminium conductors.





Unique Advantages

 Excellent weather resistance, ultraviolet aging resistance and higher embrittlement resistance than heat shrink tubing
 More resistant to slab and prick, abrasion, acid and alkali than silicone cold shrink tubing
Simultaneously expands and shrinks with workpieces without clearances, seals tight in harsh   environment
Stably sealing the workpieces in windy environment
Well suited for cable less than 1KV
Seals tight, retains its resiliency and pressure even after prolonged years of ageing and exposure.
Simple , safe installation, requires no tools or special training. No torches or heat work required.
Diameter shrinkage:≥50%
Sealing class IP68





Applications

 Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000volts
Meets ANSI C119.1, directly buriable or submersible
For indoor, outdoor, or overhead use
 Physical protection and moisture sealing for high-voltage, air-insulated connectors and lugs such as spacer cable and lug connections to bus bar
Insulation of secondary splices copper or aluminium conductors
 Relocation of service
 Dig-in repairs, sheath repairs
Insulation of inline conductor transition connectors
Sealing of coax cables with Type N or 7/16 DIN connectors on wireless communication towers





Technical Performance



Properties Typical Data Test method
HS 49 A ASTM D 2240
Tensile Strength 11.8 MPa GB/T 528
Elongation at break 641% GB/T 528
Tear Strength 38.6 N/ mm ASTM D 624
Dielectric Strength 19.1 kV/mm ASTM D 149
Dielectric Constants 5 90ºC(in water) 7 days(1940F)5.6
Anti-enzyme (bacteria) The 28 day exposure without growth ASTM G-21
UV Resistant UV irradiation for 2000 hours without aging

ASTM G-53



Dimensions



Spec. Corresponding
3M's modle
Inner Diameter D(mm) Min Cable Outer diameter  (mm) Max Cable Outer Diameter (mm) Recovered Length L(mm)
VE18-3   18 7.8 14.3 80
VE18-6 8423-6 18 7.8 14.3 152
VE18-7 8424-7 (*) 18 7.8 14.3 178
VE25-7 8425-7 25 10.1 20.9 178
VE25-8 8425-8 25 10.1 20.9 203
VE25-11   25 10.1 20.9 279
VE25-12   25 10.1 20.9 305
VE28-5 CXS-1 (*) 28 8.0 22.5 125
VE35-6   35 13.9 30.1 152
VE35-8   35 13.9 30.1 203
VE35-9 8426-9 35 13.9 30.1 229
VE35-11 8426-11 35 13.9 30.1 279
VE42-6 8427-6 42 16.8 35.1 152
VE42-8   42 16.8 35.1 203
VE42-10   42 16.8 35.1 254
VE42-12 8427-12 42 16.8 35.1 305
VE42-16 8427-16 42 16.8 35.1 406
VE42-18   42 16.8 35.1 457
VE50-8 CXS-2 50 13.5 43.7 203
VE58-6 8428-6 58 24.0 49.3 152
VE58-7   58 24.0 49.3 178
VE58-8   58 24.0 49.3 203
VE58-10   58 24.0 49.3 254
VE58-12 8428-12 58 24.0 49.3 305
VE58-18 8428-18 58 24.0 49.3 457
VE58-24 8428-24 58 24.0 49.3 610
VE58HP-10 98KC-21 (*) 58 20.5 51.0 254
VE65-10 CXS-3 (*) 65 23.7 57.5 254
VE77-6 8429-6 77 32.2 67.8 152
VE77-7   77 32.2 67.8 178
VE77-9 8429-9 77 32.2 67.8 229
VE77-12 8429-12 77 32.2 67.8 305
VE77-13   77 32.2 67.8 330
VE77-14   77 32.2 67.8 355
VE77-18 8429-18 77 32.2 67.8 457
VE77-22   77 32.2 67.8 550
VE77HP-13 98KC-31 (*) 77 27.4 70.0 330
VE105-8   105 42.6 93.7 203
VE105-9 8430-9 105 42.6 93.7 229
VE105-18 8430-18 105 42.6 93.7 457
VE105-20   105 42.6 93.7 508
VE120-24   120 33.0 114.3 610
VE160-24   160 60.0 154.0 620
