Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision

China Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision supplier
Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision supplier Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision supplier Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision supplier Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision supplier

Large Image :  Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision

Product Details:

Place of Origin: China
Brand Name: H-WELDING
Certification: CE
Model Number: SXBJ-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time: 15 working days after received your payment
Payment Terms: 30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability: 30sets per month
Contact Now
Detailed Product Description
Product Name: 400mm Milling Thickness Edge Milling Machine Application: Steel Sheet Milling
Press Type: Hydraulic Power Milling Length: 12m
Milling Head: Taiwan E-long Milling Head Power: 7.5kw *2
Hydraulic Jack NO.: 15 Milling Thickness: 6-60mm
Milling Angle: 0°~45° /-45°~0° Beveling Type: X,J,V

400mm Milling Thickness Edge Milling Machine With Sandvik Milling Facer For X , V , J Beveling With Feeding Rack



Specifications:



               Model

Main parameter

TX 32A Milling head

TX-40A Milling head

32YXBJ-15

32XBJ-18

40YXBJ-15

40YXBJ-18

Max. Part length

15M

18M

15M

18M

Plate thickness

6-160mm

Plate width(the machining side is parallel )

400-1000mm

Milling angle

0o  milling angle is not adjustable

Milling head model

TX-32A

TX-40A

Milling head motor power and revote speed

5.5KW,1440r/min

7.5KW,1440r/min

Facer diameter

D=125-320mm(out factory with Ø200 facer )

D=160-400mm(out factory with Ø200 facer )

Main axes revote speed

125-630r/min7 grade

100-630r/min2 grade

Milling transverse traveling stroke

400mm

Milling speed

0.1-1.0m/min

Milling free speed

Vfast =5m/mi rapid backing motor driving

Press way

Hydraulic powered (about  3.5mpa) or gas cylinder powered (6kg/cm2)

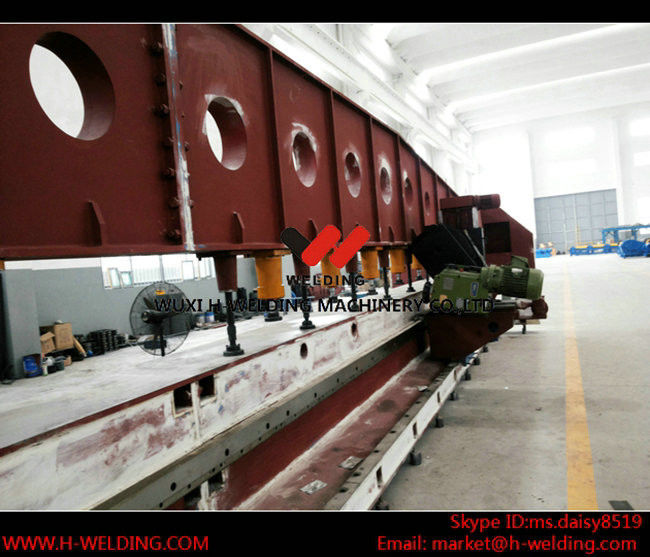

Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision



Description:



  • There are manual lubricate pump on the milling moving unit, and it can drop lube to two sets of rails, in order to make sure that there are lube film on the rail face.



Applications:



Milling head forward and

backward stroke

300mm

Milling head up and

down stroke

300mm

Hydraulic press jack No.

24sets



Competitive Advantage:



  • It has the automatic hydraulic press jack and manual screw jack at the down position and press the work piece reliable, which can avoid the milling shaking and decrease the noise.
  • The hydraulic cylinder press work piece, beam has normal spring deformation and spring upward, after release the hydraulic cylinder it will reset.

Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision

Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision
