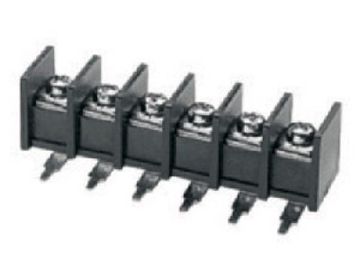

Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 10mm Pitch and 2 to 30 Poles

Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 10mm Pitch and 2 to 30 Poles
Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 10mm Pitch and 2 to 30 Poles

Large Image :  Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 10mm Pitch and 2 to 30 Poles

Product Details:
Place of Origin: Shenzhen
Brand Name: Starpai
Certification: CE,Rohs
Model Number: 305-4-10
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 1 usd
Packaging Details: Standard packing
Delivery Time: 30 days after payment
Payment Terms: T/T
Supply Ability: 500000/month
Contact Now
Detailed Product Description
High Light:

Barrier Terminal Block

,

Terminal Block

,

PCB connector

Barrier Terminal Block Type High Power Automotive Terminal Block Connector/Socket with 10mm Pitch and 2 to 30 Poles 0

Detailed

Pitch
10.0mm
Poles
2-24 Pin
Material
CasePA66+15%GF
ConductorBrass,Tin plated
ScrewM4,C1018 steel,Ni plated
Electrical
Voltage300 V
Current rating20A
Electrical WithstandingAC2500V,1minute
Isolation resistanceDC500V 1000MΩ
Wire range22-12 AWG
Max Torque12kgf.cm
Mechanical
Operation temperature- 33℃～+105℃
Strip length10-12mm
