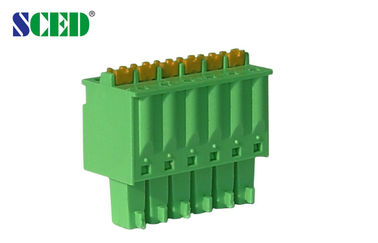

2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

China 2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets supplier

Large Image :  2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-03

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 3.81mm
Number Of Contacts: 2P-22P Wire Range: 16-30
Rated Voltage: 300V Rated Current: 8A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Detailed product Description:
2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

■Single Level;  □Double Levels;  □Triple Levels

This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks





How to order:

2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data







Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

9-10




2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
