Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A

China Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A supplier

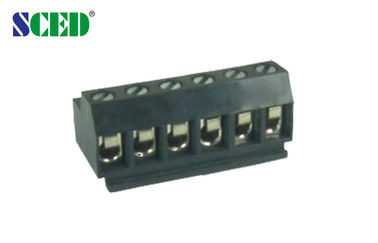

Large Image :  Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP500P-02

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 5.00mm
Number Of Contacts: 2P-24P Wire Range: 12-30
Rated Voltage: 300V Rated Current: 18A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Detailed product Description:
Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
■Single Deck;  □Double decks;  □Triple decks

This female plug match with male pins’ series: TP500H-01, TP500H-02V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks



How to order:


Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG

12-30





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass /Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

               7

Screw / Torque                    / lbf.in

            M2.5 / 3-3.5





Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A



Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
