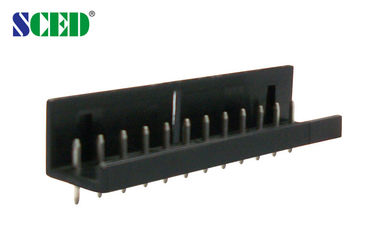

5.08mm 300V 10A Pcb Terminal Block Connector , Male Plug-in Terminal Blocks

5.08mm 300V 10A Pcb Terminal Block Connector , Male Plug-in Terminal Blocks
5.08mm 300V 10A Pcb Terminal Block Connector , Male Plug-in Terminal Blocks

Large Image :  5.08mm 300V 10A Pcb Terminal Block Connector , Male Plug-in Terminal Blocks

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-08
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Detailed Product Description
Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 5.08mm
Number Of Contacts: 2P-24P Rated Voltage: 300V
Rated Current: 10A Color: Green
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Level: Single Level
High Light:

plug in terminal block connector

,

barrier terminal block connector


Detailed product Description:

Header, Male Sockets, Pitch: 5.08mm, 300V 10A, 2P-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-08

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

5.08mm 300V 10A Pcb Terminal Block Connector , Male Plug-in Terminal Blocks 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10

300 / 10

300 / 10

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.4

Pin Dimension                      mm

1.0*1.0







5.08mm 300V 10A Pcb Terminal Block Connector , Male Plug-in Terminal Blocks 1


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
