Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply

China Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply supplier

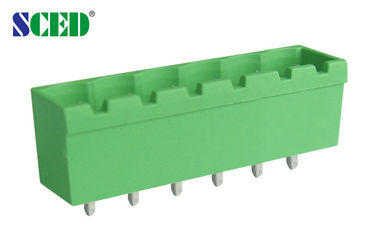

Large Image :  Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508H-76

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 7.62mm
Number Of Contacts: 2P-16P Rated Voltage: 300V
Rated Current: 18A Color: Green
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Level: Single Level

Detailed product Description:

Header, Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB, Power Supply

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply

Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage                 KV

6

6

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.4

Pin Dimension                      mm

1.0*1.0

Header , Male Sockets Plug In Terminal Block Connector Pitch 7.62mm for PCB , Power Supply


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
