Pitch 9.50mm , 300V 20A , any poles available , High Current Terminal connectors

China Pitch 9.50mm , 300V 20A , any poles available , High Current Terminal connectors supplier

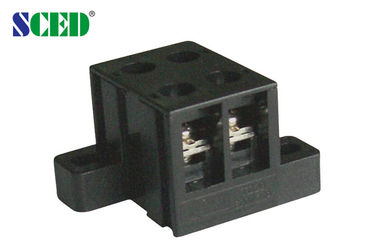

Large Image :  Pitch 9.50mm , 300V 20A , any poles available , High Current Terminal connectors

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR20-00-2P

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 9.50mm
Number Of Contacts: Any Poles Available Wire Range: 24-12
Rated Voltage: 600V Rated Current: 20A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

 Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..




Detailed product Description:

Pitch 9.50mm, 600V 20A, any pole available, High Current Terminal connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

Pitch 9.50mm , 300V 20A , any poles available , High Current Terminal connectors



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 20

300 / 20



Wire Range                       AWG

24-12

24-12



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 /20

800 / 20

1000 / 20

Rated Surge Voltage                 KV

6

8

8

Rated Connecting Capacity           mm2

3.5

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

8-9

Screw Torque                    mm

M3.5 / 7-10










Pitch 9.50mm , 300V 20A , any poles available , High Current Terminal connectors


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
