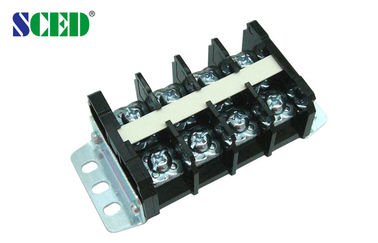

High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A

High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A
High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A

Large Image :  High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR60-01-BM0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 19.00mm
Number Of Contacts: Any Poles Available Wire Range: 4-20
Rated Voltage: 600V Rated Current: 60A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

plug in terminal block connector

,

barrier terminal block connector

Detailed product Description:

High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A any pole available


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




How to order:

High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

14

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

12-15

Screw / Torque                    / lbf.in

M5 / 18-22







High Current PCB Barrier Terminal Block Connector 19.00mm Pitch 600V 60A 1


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
