Pitch 10.1mm 600V 65A 2P-24P Through Panel Terminal Block for Electric Power

China Pitch 10.1mm 600V 65A 2P-24P Through Panel Terminal Block for Electric Power supplier

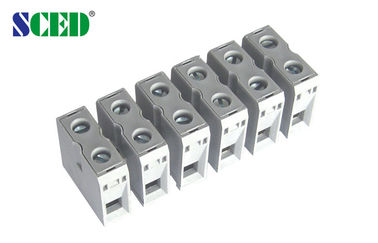

Large Image :  Pitch 10.1mm 600V 65A 2P-24P Through Panel Terminal Block for Electric Power

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-10N-06

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 100K poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 10.1mm
Number Of Contacts: 2P-24P Wire Range: 6-24
Rated Voltage: 600V Rated Current: 65A
Color: Grey Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Detailed product Description:
Pitch 10.1mm 600V 65A 2P-24P Through Panel Terminal Block for Electric Power, Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks, terminal block connectors

How to order:

Pitch 10.1mm 600V 65A 2P-24P Through Panel Terminal Block for Electric Power

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 65



600 / 5

Wire Range                       AWG

6-24



6-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11

Screw / Torque                    / lbf.in

M4 / 10.6-13







Pitch 10.1mm 600V 65A 2P-24P Through Panel Terminal Block for Electric Power




Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
