Product Details:
Payment & Shipping Terms:
|
| Type: | Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Pitch: | 12.00mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 10-20 |
| Rated Voltage: | 600V | Rated Current: | 30A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | barrier terminal block connector,pcb terminal block connector |
||
Detailed product Description:

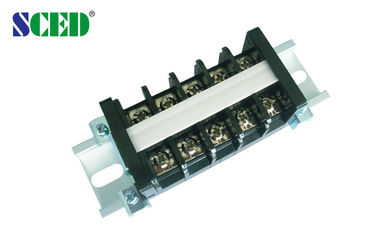

600V 30A High Current Terminal Connectors, Pitch 12.00mm Barrier Terminal Block
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 35 |
600 / 30 |
600 / 5 |
|
Wire Range AWG |
10-20 |
10-20 |
10-20 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 /30 |
800 / 30 |
1000 / 30 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
5.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PC / UL94, V-0 |
||
|
Conduction Board/ Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw Torque mm |
M4 / 10.6-13 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
