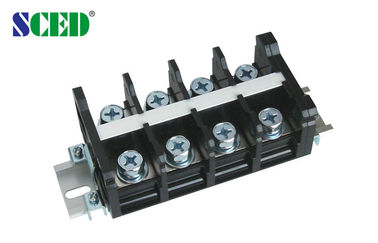

PCB Barrier Terminal Block Connector For Switch , Power Supply 26.00mm , 600V 101A

PCB Barrier Terminal Block Connector For Switch , Power Supply 26.00mm , 600V 101A
PCB Barrier Terminal Block Connector For Switch , Power Supply 26.00mm , 600V 101A

Large Image :  PCB Barrier Terminal Block Connector For Switch , Power Supply 26.00mm , 600V 101A

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR100-01-FaM0-A3
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 26.00mm
Number Of Contacts: Any Poles Available Wire Range: 2-20
Rated Voltage: 600V Rated Current: 101A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

plug in terminal block connector

,

barrier terminal block connector

Detailed product Description:


PCB Barrier Terminal Block Connector For Switch, Power Supply 26.00mm, 600V 101A


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: BlaPluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks




How to order:


PCB Barrier Terminal Block Connector For Switch , Power Supply 26.00mm , 600V 101A 0

Applications:


PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 101

600 / 101



Wire Range                       AWG

2-20

2-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /100

1000 / 100

1000 / 100

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

38

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

10-12

Screw Torque                    mm

M8 / 31-40








PCB Barrier Terminal Block Connector For Switch , Power Supply 26.00mm , 600V 101A 1




Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
