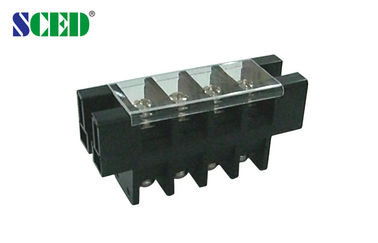

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A
Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

Large Image :  Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TD180-01-C
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 21.0mm
Number Of Contacts: Any Poles Available Wire Range: 20-1/0
Rated Voltage: 600V Rated Current: 180A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

barrier terminal block connector

,

pcb terminal block connector

Detailed product Description:

Single Deck Through Panel Terminal Block Connector Pitch 21.0mm, 600V 180A
Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:


Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 180

300 / 180

300 / 10

Wire Range                       AWG

20-1/0

20-1/0

4-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 180

800 / 180

1000 / 180

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

8

Material



Insulation Material / Inflammability Class

PBT/ UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

14-18

Screw / Torque                    / lbf.in

M6 / 20-22






Single Deck Through Panel Terminal Block Connector Pitch 21.0mm , 600V 180A 1




Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
