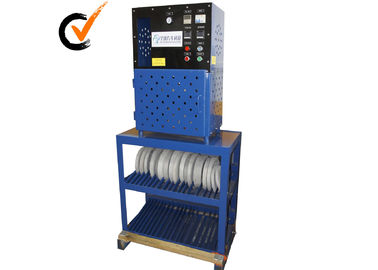

4KW 220V 2 Phase Torque Converter Rebuilding Equipment Lock-up Plate Bonder

4KW 220V 2 Phase Torque Converter Rebuilding Equipment Lock-up Plate Bonder
4KW 220V 2 Phase Torque Converter Rebuilding Equipment Lock-up Plate Bonder

Large Image :  4KW 220V 2 Phase Torque Converter Rebuilding Equipment Lock-up Plate Bonder

Product Details:
Place of Origin: China
Brand Name: Raytech
Model Number: FPB01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD$7660.00(including all Dies)
Packaging Details: wood base & wrapping stretch membrane
Delivery Time: 90 days after receipt the 30% deposit
Payment Terms: 30% deposit with order by T/T, balance due 2 weeks before shipment by T/T, western union
Supply Ability: 10 Set/Sets per Month
Detailed Product Description
Brand Name: Ray Technology Solutions Material: Iron
Color: Blue Warranty: 12 Months
High Light:

Torque Convertor Single Gun Auto-welder

,

rebuild torque converter

Torque Converter Lock-up Plate Bonder Rebuilding Equipment Description

Torque converter lock-up plate bonder is a special equipment which can bond the friction disc to the locking plate or front cover of torque converter by heating. When repairing the torque converter, it is often necessary to replace the friction discs.



The bonding process has to be completed under the conditions of high temperature or high pressure. The high-temperature bonding machine can bond the friction discs quickly and accurately.



The PISTON BONDER is made up of the following major assemblies:

  • Cooling Chambers
  • Air Ram
  • Electronic Control Panel
  • Upper Bonding Plate
  • Top Bonding Die
  • Bottom Bonding Die
  • Safety Switch
  • Lower Bonding Plate
  • Bonder Safety Door
  • Primary Frame



Following is the features of friction plate bonder:



1.Efficient---Whole process just need 7 minutes



2.Saving manpower---Whole process are automatically



3.Flexible---for all sizez friction plate



4.Temperature buzzer---Visual Management to ensure security and reliability



5.Over load protection---Air switch can provide a overload protection by automatic stop when the working current exceeds the standard




Standard accessory    Different kind of Bonder Die


AL4

CD4E

01N

HONDA

5HP19

RE4F04B

4T65E

F4A4

RE4F03B





Weight

Bonder Machine 250KG

Bonder Die 75KG

Size

96*67*187cm

Place of Origin Guangzhou China (Mainland)
Brand Name Ray Technology Solutions
Packaging Details wood base & wrapping stretch membrane
Warranty 12 months
Minum Order Quantity:  1 pcs
Price Get Latest Price
Delivery Time

90 days after receipt the 30% deposit

Payment Terms 30% deposit with order by T/T,
balance due 2 weeks before shipment by T/T.
Transport Sea Freight
Port Huangpu,  Guangzhou ,  China
