Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU

China Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU supplier
Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU supplier Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU supplier Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU supplier

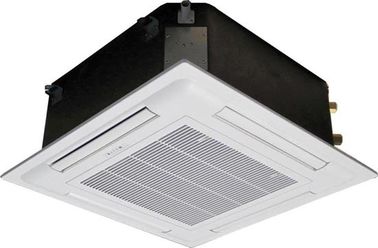

Large Image :  Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU

Product Details:

Place of Origin: China
Certification: ISO
Model Number: FP-68KM

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Wooden case/carton case
Delivery Time: 25~30days
Payment Terms: TT, LC
Supply Ability: 20000pcs per year
Contact Now
Detailed Product Description
Product Name: 4-Way Cassette Fan Coil Unit Application: HVAC Sysem
Cooling Capacity: 400CFM / 680m3/h Fluid: Chilled Water/hot Water

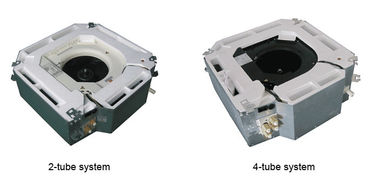

System: Two Pipe System Power Supply: 220V/1PH/50Hz
Drain Pump: Equipped Inside Controller: Remote Control

K Series 4-Way Cassette Fan Coil Unit FP-68KM, 400CFM, HVAC system FCU





Specifications:



Model



FP-68KM

Air Volume

High

m3/h

680

Middle

540

Low

400

External static pressure

Pa

0

Power supply



220V/1PH/50Hz



Cooling capacity

TH

H

W

3600

SH

2790

TH

M

W

3080

SH

2186

TH

L

W

2700

SH

1743

Heating capacity

H

W

5400

M

W

4375

L

W

3751

Noise lelvel

High speed

dB(A)

41

Power input

W

62

Water flow

m3/h

0.62

Pressure drop

KPa

22.1

Inlet/outlet water pipe connection



ZG3/4”

Coil

Type



Copper tubes with hydrophilic aluminium fins

Max.working pressure

MPa

1.6

Drain water pipe connection

mm

Ф26

Dimensions (L*W*H)

Unit(drained by pump)

mm

570*570*290

Panel

mm

650*650*45

Net weight(drained by pump)

kg

23





Description:


1. 4-way air flowing, which can uniform temperature distribution in the room;
2. Thin design unit, which can be installed in a limit ceiling,(the min. thickness is 290mm);
3. Easy to be installed, low installation cost;
4. Remote controller is standard and wire controller is optional;
5. Auto swing: using advanced 3D software to design the centrifugal fan with streamline and big                      diameter turbin;
6. High lift water drained pump(750mm), easy to plan the condensate drained pipe;
7. Float switch inside to prevent from leaking;
8. K style cassette fan coil unit can maintain the pump and water level switch from the external of unit,             can be easily examine and repair the pump as long as just remove 4 screws;




Applications:


1. Commercial buildings: Star hotels, restaurants, office buildings, schools, supermarkets, shopping mall, entertainment centers,theaters,etc
2. Public places: Airports, stations, exhibition halls, stadiums, museums, convention centers, church,etc
