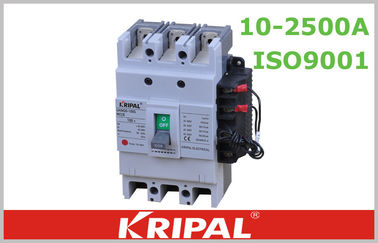

Magnetic Trip Molded Case Circuit Breaker Earth Leakage , UVT SHT Approvals

Magnetic Trip Molded Case Circuit Breaker Earth Leakage , UVT SHT Approvals
Magnetic Trip Molded Case Circuit Breaker Earth Leakage , UVT SHT Approvals

Large Image :  Magnetic Trip Molded Case Circuit Breaker Earth Leakage , UVT SHT Approvals

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKM30-100
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 30000 pcs per month
Detailed Product Description
Ampere Range: 16A,25A,32A,40A,50A,63A,75A,100A Poles Available: 3 Pole
Certificate: CE Purpose: For Protection Of Power Distribution
Trip Unit: Thermal Magnetic Warranty: 2 Years
High Light:

Earth Leakage Circuit Breaker

,

Thermal Magnetic Circuit Breaker


Magnetic Trip Molded Case Circuit Breaker Earth Leakage , UVT SHT Approvals



The UKM30 series molded case circuit breaker is high-tech products in 21st century with advanced design, high performance, pleasant apprearance and delicate dimension.


Description:

UKM30 series molded case cicuit breaker is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC660V, Rated operating current up to 250A. It features normal structure reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment
against overload and short circuit. It complies with standard of IEC 60947-2.


Specifications:



Type UKM30-100S UKM30-250S UKM30-400S
Rated current In(A) 16,25,32,40,50, 63,75,100 100,125,150,175,200,225,250 250,300,350,400
Number of poles 3 4 3 4 3 4
Rated voltage Ui(V) AC690V AC690V AC690V
Arc distance (mm) ≤50 ≤50 ≤50
Rated ultimate short-circuit breaking capitily Icu/Ics(KA) AC690V 5/3 5/3 10/10
AC400V 50/35 50/35 70/70
AC230V 100/50 100/50 100/100
Operational performance (times) ON 6000 2000 1000
OFF 8500 7000 4000
Dimensions (mm) a 90 120 105 140 140 185
b 155 165 257
c 68 68 103
Weight(kg) 1.1 1.4 1.5 1.9 5.5 7.5
Rated operation frequency  120 120 60



Inverse time lag characteristic of circuit breaker for distribution:



Name of test current

Times of rated current

(h)Conventional time

Intial state

Inm≤40

40<In≤250

In>250

Conventional non-tripping current

1.05

≥1h

≥2h

≥2h

Cold

Conventional tripping current

1.3

<1h

<2h

<2h

Thermal

Returnable time

3

Current of returning characteristic

Current of returning characteristic

Current of returning characteristic

Cold

3

5s

8s

12s

Cold






Accessories:


*According to the outfit, it also has two types: with or without outfit. The outfit include inner and outside accessories.


*The inner accessories have shunt release. Under-voltage release. Auxiliary contact and alarm contacts four kinds.


*The outside accessories are turning handle operation mechanism, power-driven operation mechanism, inter locking mechanism and the connecting terminal busbar of auxiliary device.




Magnetic Trip Molded Case Circuit Breaker Earth Leakage , UVT SHT Approvals 0





Service:



1. Delivery time: 20 working days for bulk order and depend on ordering quantity



2. Strong production capacity and strict quality control system;



3. Your inquiry and problems related to our products or prices will be replied in 24 hours;



4. Well-trained and experienced staffs to answer all your inquires;



5. After-sale tracking service for all of our clients;



6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.



7. Payment: usually L/C, T/T,



8. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
