Compact Electronic Trip Molded Case Circuit Breaker 250A , High breaking capacity

Compact Electronic Trip Molded Case Circuit Breaker 250A , High breaking capacity
Compact Electronic Trip Molded Case Circuit Breaker 250A , High breaking capacity

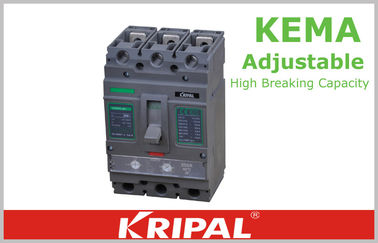

Large Image :  Compact Electronic Trip Molded Case Circuit Breaker 250A , High breaking capacity

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE, KEMA
Model Number: UKM32-250/3
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Current Range: 100A; 125A; 160A; 200A; 250A Poles Available: 3pole; 4pole
Breaking Capacity: 65KA Color: Dark
Purpose: For Protection Of Power Distribution Trip Unit: Thermal Magnetic, Electronic
High Light:

Thermal Magnetic Circuit Breaker

,

Residential Circuit Breakers



Compact Electronic Trip Molded Case Circuit Breaker 250A , High breaking capacity





KRIPAL has the Utility Model Patent for the structure of double making & double breaking





Description:



The UKM32 series MCCB are used for making, breaking, and protection of low-voltage  distribution  systems and motors.



Several breaking capacities exist for each model of circuit breaker, meeting the demands  for varying  types of protection.



Several different rated current levels are available for each frame size



Model

Rated current (A)

UKM32-160

16

20

25

32

40

50

63

80

100

125

160

UKM32-250

40

50

63

80

100

125

160

200

250

-

-

UKM32-630

300

400

500

630

-

-

-

-

-

-

-





Product Features:



1. Thermal magnetic adjustable
2. Double making & double breaking design
3. Contacts: 85% AgCdo
4. Metal parts: cooper
5. Plastic Parts: brand-new materials

6. High breaking capacity.

7. Bearing Rotating shaft

8. The max breaking capacity of each model is up to 150 kA
9. U-type fixed contact design
10. Don't contain any noxious substances and its manufacturing And processing are performed in

accordance with the requirements of ISO14001.





Specifications:



MCCB  for power distribution

UKM32-250

Frame size

250A

Rated current, In

40, 50, 63, 80, 100, 125, 160, 200, 250

Poles

3, 4,

Rated operational Voltage, Ue

AC              (V)

690

DC              (V)

500

Rated impulse withstand voltage, Uimp

8

Rated insulation voltage. Uimp

750

Rated ultimate short circuit breakering capacity, Icu

N

AC 50/60HZ

220/240V  (KA)

100

380/415V  (KA)

85

440/460V  (KA)

70

480/500V  (KA)

50

660/690V  (KA)

8

DC

250V          (KA)

65

2 poles in series

500V          (KA)

65

Rated service breaking capacity, Ics(%Icu)

100%





Benefits:



a. Material: PC retardant polycarbonate, good heat resistance, impact resistance, flame

                 retardant properties.

b. Easy to install: tunnel type terminals pressure,easy to install and convenient.

c. Securely installed: snap removable teh new design is more flexible use,more tightening.
d. Rapid extinguishing system: interrupter piece with steel material,copper plating on steel, steel

    to ensure corrosion resistance.





Tripping Unit:



Compact Electronic Trip Molded Case Circuit Breaker 250A , High breaking capacity 0





Declaration:



KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are build by ourselves. Furthermore our items are different from others to a certain degree. Hereby, we claim that



KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.
