Residual Current Circuit Breaker Earth Leakage ELCB 30 300 500mA

China Residual Current Circuit Breaker Earth Leakage ELCB 30 300 500mA supplier

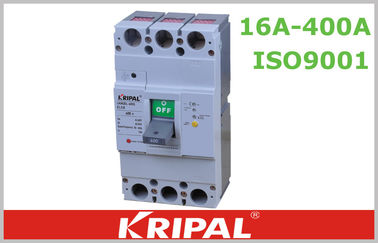

Large Image :  Residual Current Circuit Breaker Earth Leakage ELCB 30 300 500mA

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKM30L-400S 4P

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Current Range: 250A 300A 350A 400A Poles Available: 3P
Rated Working Voltage: 400VAC Rated Insulation Voltage: 690VAC
Protection: Earth Leakage Breaking Capacity: 50/25



Residual Current Circuit Breaker Earth Leakage ELCB 30 300 500mA





UKM30L Series Earth Leakage Circuit Breaker is developed with hi-tech in 1990S with completed protection functions, high performance, smart dimension which is the ideal replacements for the olds.





Description:



UKM30L series residual Current Circuit Breaker (herein after called circuit breaker) is applied for the power distribution network of AC 50Hz,rated current 800A.



The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault.It can be used to distribute electric power and protect power equipment against overload and short circuit.The circuit breaker can change the circuit and start motor infrequently.



The rated residual operating current and the maximum off-time can be adjusted on-site according to actual situation,the circuit breaker can be customized alarm function and no tripping





Specifications:



Frame rated current 100 250 400
Model UKM30L-100S UKM30L-250S UKM30L-400S
Ratedcurrent In(A) 16,25,32,40,50,63,75,100 100,125,150,175,200,225,250 250,300,350,400
Poles 3  4 3  4 3  4
Ratedvoltage Ui(V) AC690.50HZ AC690.50HZ AC690.50HZ
Ratedvoltage Ue(V) AC400.50HZ AC400.50HZ AC400.50HZ
Rated limit short/service breaking capitily Icu/Ics(KA) 50/25 50/25 50/25
Rated Actuation residual current 30,100,300, 500mA 30,100,300,500mA 30,100,300,500mA
Ratedresidual non-operattion current 1/2In 1/2In 1/2In
Rated residual short-circuit making & breaking capacity 1/4Icu 1/4Icu 1/4Icu
Operation charateristic (times) ON / OFF 1500 / 8500 1000 / 7000 500 / 4000





Purpose:



The main purpose of earth leakage protectors is to prevent injury to humans and animals due to electric shock.





Characteristics:



1.  Compact size, light weight and attractive frame

2.  Adapts new material, new craftwork and high insulation capacity

3.  Advanced structure

4.  Short arc-overdistance (some of the “ 0” arc-over distance)

5.  Shake proof..





Wiring:

Residual Current Circuit Breaker Earth Leakage ELCB 30 300 500mA
