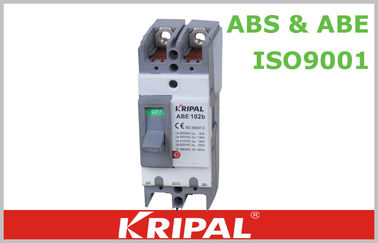

Compact General Electric Circuit Breaker 100A 2 Pole MCCB , Economic Type
ABS/ABE seriesmotor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.
Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.
It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.
The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
Specifications:
|
Type |
2pole |
AB-52E |
AB-52S |
AB-62E |
AB-62S |
AB-102E |
AB-102S |
AB- 203E |
AB- 203S |
AB- 403E |
AB- 403S |
|
3pole |
AB-53E |
AB-53S |
AB-63E |
AB-63S |
AB-103E |
AB-103S |
|||||
|
Frame size(AF) |
50 |
60 |
100 |
225 |
400 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rated operational voltage(V)Ue (50/60Hz) |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
|
|
Rated insulation voltage(V)Ui(50/60Hz) |
690 |
690 |
900 |
900 |
690 |
690 |
690 |
690 |
690 |
690 |
|
|
Rated impulse withstand voltage(KV)Uimp |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
|
Uitimate breaking capacity (KA,Icu AC 50/60Hz) |
220V/240V |
10 |
25 |
10 |
25 |
10 |
50 |
35 |
50 |
35 |
50 |
|
380V |
7.5/5 |
14/10 |
7.5/5 |
14/10 |
7.5/5 |
25 |
18 |
25 |
30 |
42 |
|
|
415V |
7.5/5 |
14/10 |
7.5/5 |
14/10 |
7.5/5 |
25 |
18 |
25 |
25 |
35 |
|
|
440/460V |
5 |
10 |
5 |
10 |
5 |
25 |
18 |
25 |
25 |
35 |
|
|
480/500V |
2.5 |
7.5 |
2.5 |
7.5 |
2.5 |
25 |
10 |
14 |
18 |
25 |
|
|
600V |
2.5 |
5 |
2.5 |
5 |
2.5 |
14 |
7.5 |
10 |
18 |
22 |
|
Work & Install Circumstance
1 Altitude of the installation place shall not exceed 2000m.
2 Circumstance temperature shouldn't be higher than +40ºC(+45ºC for marine type) or lower than -5ºC average temperature of 24h shall not exceed +35ºC.Relative atmosphere humidity shall not exceed 50% when circumstance temperature is at 40ºC, relative humidity could be higher if temperature drops, the average humidity of the most humid month shall not exceed 90%, in the meantime, average temperature of this month shall not be lower than +25ºC, condensation on product surface due to temperature changing should be taken into consideration as well.
3 Working circumstance of the product shall not contain any explosive, metal corrosive or conductive
media.
4 Vertical inclination against the installation surface should not exceed 5°.
5 Working area ought to be rainproof and doesn't contain too much amount of vapor in air.
6 Working area mustn't be shaky.
7 Install type: III
8 Pollution class: 3
9 There are two basic install methods: vertical connecting & horizontal connecting.
10 There are two wiring methods: upper wiring & lower wiring.
11 Breaker can be defined as fixed type circuit breaker & plugin circuit breaker.
