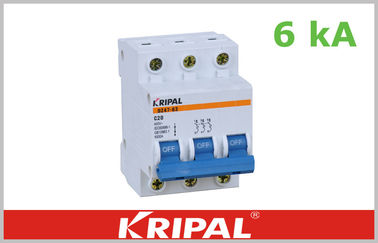

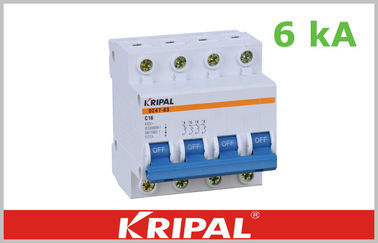

Commercial Automatic Miniature Circuit Breaker Electrical MCB 6000A

China Commercial Automatic Miniature Circuit Breaker Electrical MCB 6000A supplier
Commercial Automatic Miniature Circuit Breaker Electrical MCB 6000A supplier Commercial Automatic Miniature Circuit Breaker Electrical MCB 6000A supplier

Large Image :  Commercial Automatic Miniature Circuit Breaker Electrical MCB 6000A

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: DZ47

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Breaking Capacity: 6 Ka Poles Available: 1pole, 2 Pole, 3 Pole, 4pole
Ampere: 6A,10A,16A,20A,25A,32A,40A,50,63A Voltage: 240V/415V
Curve: B; C; D Patent: Design Patent



Commercial Automatic Miniature Circuit Breaker Electrical MCB 6000A





Description:



A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and interrupt current flow. Unlike afuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. Circuit breakers are made in varying sizes, from small devices that protect an individual household appliance up to large switchgear designed to protect high voltage circuits feeding an entire city.





Advantages:

1)DZ47 series MCB is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the systems.


2)This product is novel in structure, light in weight, reliable and excellent in performance.


3)It has high breaking capacity and can trip quickly. Its case and body are made of highly fire-retardant and shockproof plastic.


4)This product, with long life, is mainly used in AC 50Hz / 60Hz single-pole 240V or two / three / four-pole 415V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment and lighting circuit in normal cases. This product conforms to GB10963 and IEC60898 standards.



Specitifcation:



Standard



IEC898,GB10963-99,EN60898

Number of poles



1P.2P.3P.4P

Rated current(In)



1,2,3,4,6,10,16,20,25,32,40,50,63

Rated voltage(Un)



AC240/415V

Rated frequency



50/60Hz

Tripping curve



B,C,D

Release action characteristics

    Time delay

1.13In≥1h non-trip

1.45In<1h trip

2.55In 1S<60S trip

Instantaneous(Curve C)

5In≥0.1S non-trip

10In<0.1 trip

Magnetic releases operate



B curve:between 3 and 5In

C curve:between 5 and 10In

D curve:between 10 and 14In

Rated breaking capacity(Lcn)



3000A,4500A,6000A

Endurance



≥2000

Circumstance temperature



-5°c+40°c

Electrical life



≥6000times

Mechanical life



2000 times

Tropical ration



Treatmen 2(RH95%,at 55°c)

Protection degree



IP20





Working environment:



Working Temperature:-20 °C ~70°C

Heat Proof: Type 2(As temperature is 55°C,relative humidity is 95%)

Protective Grade: IP 20

Environment Protection

The insulated material used conform to the EU Standard

The metal material used conform to the EU Standard





Our service:



1. Samples: provided freely



2. Package: packed in standard cartons, special packing is negotiable



3. Warranty: 2 years at least



4. Delivery: within 30days after received the deposit.



5. OEM, ODM is acceptable



6. We can help you with any of your idea to design and put it into production.



7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem, approach of sales...
