DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for Household

China DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for Household supplier
DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for Household supplier DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for Household supplier

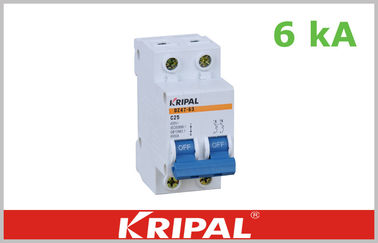

Large Image :  DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for Household

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: DZ47

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Breaking Capacity: 6 Ka Poles Available: 1pole, 2 Pole, 3 Pole, 4pole
Ampere: 6A,10A,16A,20A,25A,32A,40A,50,63A Voltage: 240V/415V
Curve: B; C; D Patent: Design Patent



DZ47 1 Pole 2 Pole 3 Pole 4 Pole Miniature Circuit Breaker for Household





ISO9001: 2008


6-63A with 1, 2, 3, 4Poles


3, 4.5KA Breaking Capacity


OEM, ODM are welcome





Description:



    The DZ47 series mini circuit breaker is mainly used in AC50/60HZ single-pole230V or two, three, four-poles 400Vcircuit for overload and short-circuit protection as well as for infrequent on-and-off switching electric equipment and lighting circuit under normal condition. It can be used in lighting and electric motor distribution system. It is characterized with novel structure ,light weight, reliable and excellent performance, high breaking capacity.


     It is conformity with GB10963,IEC 60898 standards.





Advantages:

       The product is neoteric in structure, lig ht in weight, reliable and excellen t in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching electric equip ment and lighting





Specitifcation:



Standard



IEC898,GB10963-99,EN60898

Number of poles



1P.2P.3P.4P

Rated current(In)



1,2,3,4,6,10,16,20,25,32,40,50,63

Rated voltage(Un)



AC240/415V

Rated frequency



50/60Hz

Tripping curve



B,C,D

Release action characteristics

    Time delay

1.13In≥1h non-trip

1.45In<1h trip

2.55In 1S<60S trip

Instantaneous(Curve C)

5In≥0.1S non-trip

10In<0.1 trip

Magnetic releases operate



B curve:between 3 and 5In

C curve:between 5 and 10In

D curve:between 10 and 14In

Rated breaking capacity(Lcn)



3000A,4500A,6000A

Endurance



≥2000

Circumstance temperature



-5°c+40°c

Electrical life



≥6000times

Mechanical life



2000 times

Tropical ration



Treatmen 2(RH95%,at 55°c)

Protection degree



IP20





Working environment:



Working Temperature:-20 °C ~70°C

Heat Proof: Type 2(As temperature is 55°C,relative humidity is 95%)

Protective Grade: IP 20

Environment Protection

The insulated material used conform to the EU Standard

The metal material used conform to the EU Standard





Our service:



1. Samples: provided freely



2. Package: packed in standard cartons, special packing is negotiable



3. Warranty: 2 years at least



4. Delivery: within 30days after received the deposit.



5. OEM, ODM is acceptable



6. We can help you with any of your idea to design and put it into production.



7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem, approach of sales...
