OEM 63A 1000V DC Circuit Breaker Double Pole For Solar PV System

China OEM 63A 1000V DC Circuit Breaker Double Pole For Solar PV System supplier

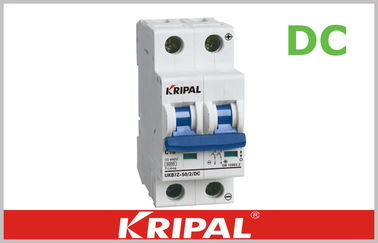

Large Image :  OEM 63A 1000V DC Circuit Breaker Double Pole For Solar PV System

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKB7Z-2P

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Color: White Enclosure, Blue Handle Breaking Capacity: 6 Ka
Poles Available: 1pole, 2 Pole, 3 Pole, 4pole Voltage: DC
Range: Same Range As UKB7Z, UKF7, UKL7,UKB7LE,



OEM 63A 1000V DC Circuit Breaker Double Pole For Solar PV System





Description:



DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic trip contact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strong permanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000 times and beautiful shape.





Application:



UKB7Z Series DC1200V 63A DC Circuit breaker, apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products. StandardProducts according IEC60947, GB14048.2, IEC60898.2 AS/NZS60898.1, AS/NZS60898.2, AS/NZ61009 Standard





Specifications:



Frame  degree  rated  current  (A) 63
Electrical  performance
Ue  Rated  operating  voltage(V  DC) AC250V  AC415V  DC440V  DC550V  DC800V  DC1000V
Rated  Current  In  (A)     6-10-16-20-25-32-40-50-63
Rated  insulation  voltage  Ui  (V  DC)         1000V
Rated  Impact  voltage  Uimp(kV)             4
Ultimate  breaking  capacity  Icu  (kV) 6 6 6 6
Run  breaking  capacity  Ics  (%Icu) 75% 75% 75% 75%
Curve  type C
Trip  type Thermal-magnetic
MECHANICAL Actual  average  value 20000
Standard  value 8500
ELECTRIC Actual  average  value 2500
Standard  value 1500
Control  and  indication
Shunt  release  (SHT) Option
Undervoltage  release  (UNT)
Auxiliary  contact(AX)
Alarm  contact  (AL)
Connection  and  installation
Wiring  capacity  (mm2) In≤ 32A,   I~25mm2,   I≥ 40A, 10~35
Ambient  temperature  (º C) -20~70
Altitude ≤ 2000
Relative  humidity ≤ 95%
Pollution  Level 3
Installation  Environment  No  obvious  shock  and  vibration
Installation  category Class  III
Installation DIN  Standard  rail
Dimensions W 17.5 35 52.5 70
  H 80 80 80 80
(W)*(H)*(Deep) Deep 71 71 71 71
Weight(kg) 0.12 0.24 0.36 0.48
