Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A

China Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A supplier
Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A supplier Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A supplier Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A supplier Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A supplier

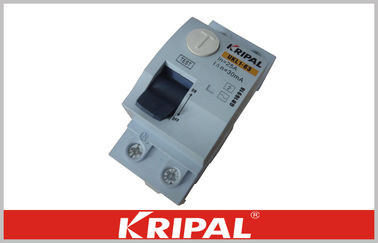

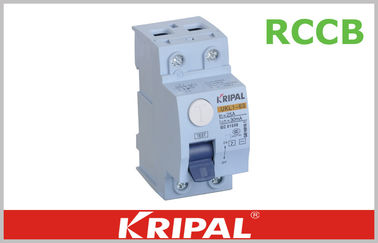

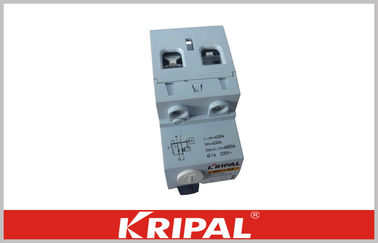

Large Image :  Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKL1

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Poles Available: 2P, 4P Ampere: 16A 25A 40A 63A
Residual Protection: Yes Type: Mini Circuit Breaker
Leakage Current: 10 30 100 300 500mA Standard: IEC1008 EN61008



Residual Current Device Mini Circuit Breaker 2 Pole RCCB 16A 25A 40A 63A




KRIPAL has the design patent for these items


A residual-current device (RCD), or residual-current circuit breaker (RCCB) is an electrical wiring device that disconnects a circuit whenever it detects that the electric current is not balanced between the energized conductor and the return neutral conductor. Such an imbalance may indicate current leakage through the body of a person who is grounded and accidentally touching the energized part of the circuit. A lethal shock can result from these conditions. RCCBs are designed to disconnect quickly enough to prevent injury caused by such shocks. They are not intended to provide protection against overcurrent (overload) or all short-circuit conditions.




Techinical data:


A. Conform to standard: GB16916.1
B. Rated voltage (Ue): 230V/400V; 50/60Hz
C. Rated current (A): 16, 25, 40, 63 A (2 poles and 4poles)
D. Rated leakage current: 10, 30, 100, 300, 500Ma
E. Electric life: ≥ 4000 times (on-off)
F. Mechanical life: ≥ 2000 times (on-off)
G. Case protection grade: IP40 after installing




Mechanical parameter

A. Installation mode: At the DIN rail of standard IEC
B. Terminal wiring capability: Conductor 1-25 mm
C. Width of shell: 2 poles 36mm; 4 poles 72 mm




Main characteristic

A. Various current specifications of leakage action ca easily ensure selective protection.
B. Inaccurate action resulting form the switch operation of electronic equipment can be avoided
C. Unless specified otherwise, the width of two-poles switch is two modules, four-poles(3P+N) is four modules



Specifications:


Technology Specification & Electrical Specification
Electric standard IEC1008 EN61008
Trip time Non-time delay; Minimal 10ms time delay
Rated voltage  230V/400V
Rated surplus operating current 10; 30; 100; 300mA, 500mA
Selection grade 3
Poles  2pole 4pole
Rated current 16A, 25A, 40A, 63A
Tripping character B, C, D characteristic curve
Terminal wiring  conductor 1-25 mm2
Environment  capability According to the IEC 1008 standard
Case protection grade IP40 after installation
Electric life Not less than 4000 times of breaking and closing
Mechanical life Not less than 2000 times of breaking and closing
Mechanical Parameter
Installation mode Installation at the DIN guide rail of 35mm
Terminal block capacity General thickness 0.8-2mm



Main benefits:

High quality
Complete range


Instantaneous tripping current:

International Standard--- IEC 60898-1 and European Standard EN 60898-1 define the rated current In of a circuit breaker for low voltage distribution applications as the maximum current that the breaker is designed to carry continuously (at an ambient air temperature of 30 °C). The commonly-available preferred values for the rated current are 6 A, 10 A, 13 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A,[5] and 125 A (Renard series, slightly modified to include current limit of British BS 1363 sockets). The circuit breaker is labeled with the rated current in amperes, but without the unit symbol "A". Instead, the ampere figure is preceded by a letter "B", "C" or "D", which indicates the instantaneous tripping current — that is, the minimum value of current that causes the circuit breaker to trip without intentional time delay (i.e., in less than 100 ms), expressed in terms of In:


    Type

Instantaneous tripping current

       B

above 3 In up to and including 5 In

       C

above 5 In up to and including 10 In

       D

above 10 In up to and including 20 In
