10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard

China 10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard supplier

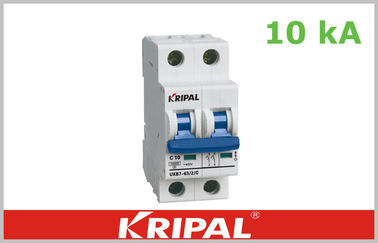

Large Image :  10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKB7-2P

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiable
Packaging Details: 12 poles packed in one small box and then in carton
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Color: White Enclosure, Blue Handle Breaking Capacity: 10 Ka
Poles Available: 1pole, 2 Pole, 3 Pole, 4pole Curve: B; C; D
Range: Same Range As UKB7Z, UKF7, UKL7,UKB7LE,



10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard





UKB7 (Moeller L7) series Circuit Breaker is the new product adopted the newest modern high technology. It’s excellent performance is depending on the quick trip and strong ability of exterminating the electrical and it enhances the safeness in the case of limited short-circuit. The brilliant characteristic of its short-circuit current is superior to the related requirement of IEC60898.The electrical endurance of the products is well improved, which reduce the destruction to the distribution system of equipments. The product is mainly used in the circuit which is AC50/60Hz, voltage≤400V and rated current≤60A. It is the best choice of the building distribution system.





Features:



1. Protection against both overload and short circuit



2. High short-circuit capacity



3. Contact position indication



4. Applicable to terminal and pin/fork type busbar connection



5. Easy mounting onto 35mm DIN rail





Technical Data:



Technology Specification & Electrical Specification
Electric standard IEC60898; GB 10963
Rated voltage 230V; 50HZ          230V/400V
Rated surplus operating current 10; 30; 100; 300mA
Selection grade 3
Rated braking capacity 10kA IEC898
Rated current 0.5-63A
Tripping character B, C, D characteristic curve
Maximum connected fuse 100A gL(> 10kA)
Work environment temperature -5 to +40 degree
Case protection grade IP40 after installation
Electric life Not less than 8000 times of breaking and closing
Mechanical life Not less than 2000 times of breaking and closing
Mechanical Parameter
Installation mode Installation at the DIN guide rail of 35mm
Terminal block capacity Conductor1-25mm; Generatrix thickness 0.8-2mm
The length of exposed plane 45mm
Enclosure height 80mm
Enclosure width 17.5mm every pole
Accessories
Auxiliary contact UKZ7-AHK
Contact with alarm indication UKZ7-NHK
Shunt trip UKZ7-ASA
Under voltage trip UKZ7-USD




Tips:



1. MCB is for non-professional operation by those untrained, and no maintenance is required



2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.



3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.



4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.





Tripping Current:



10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard







10KA MCB Mini Circuit Breaker Moller L7 Series , IEC60898 Standard







KRIPAL Main products:



Rotary isolator switch, changeover switch, IP55 waterproof switch socket, IP66 weatherproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, mold case circuit breaker, AC contactor, thermal overload relay, industrial power distribution box and etc.
