6KA 230 / 400v C15 Mini Circuit Breaker For PV System 10000 Times

China 6KA 230 / 400v C15 Mini Circuit Breaker For PV System 10000 Times supplier

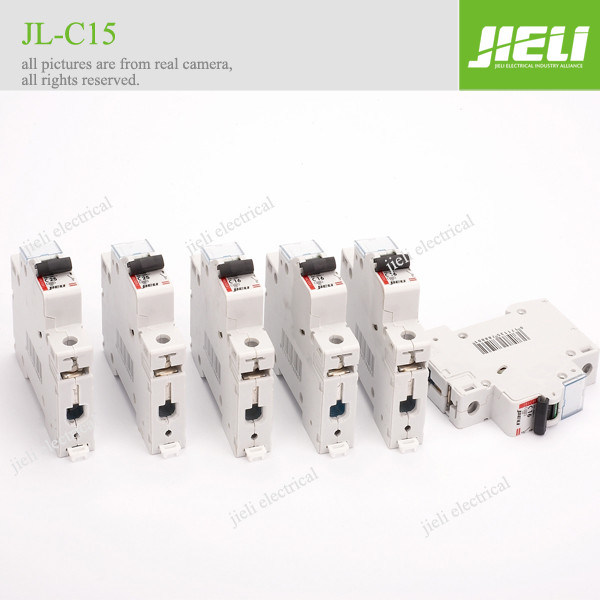

Large Image :  6KA 230 / 400v C15 Mini Circuit Breaker For PV System 10000 Times

Product Details:

Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898
Model Number: JL-C15

Payment & Shipping Terms:

Minimum Order Quantity: 1200 Piece/Pieces other
Price: Negotiable
Packaging Details: Standard Export Carton or according to the your requirements
Delivery Time: Within 20days
Payment Terms: L/C,D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000POLES/DAY
Contact Now
Detailed Product Description


6KA 230 / 400v C15 Mini Circuit Breaker For PV System 10000 Times


Quick Detail:

Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number: JL-C15
Type: Mini mcb
Poles Number: 1P/2P/3P/4P
Rated voltage (V): 230/400V
Rated current (A): 6 10 16 20 25 32 40 50 63
Mechanical life: 6000 times
Breaking capacity: 6KA
Service: OEM /ODM
Cover: fire proof
Standard: IEC60898
Certificate: CE,ROHS, CB,ISO9001,CCC,GMC,TUV


 Description:



  1. JL-C15 mcb/low voltage mini circuit breaker is characterized by compact design, light weight, long service life, different handle color for different rated current. Widely used in electrical system. enterprise, post ect.
  2. JL-C15 mini circuit breaker is for pv system
  3. JL-C15 mini circuit breaker is reliable and excellent in performance. What’s more, JL-C15 mini circuit breaker has 5 years guarantee.
  4. JL-C15 mini circuit breaker has high breaking capacity
  5. JL-C15 mini circuit breaker :good quality&low price


Applications:


Mini circuit breaker is the most widely used in building electrical terminal distribution device of a terminal protection appliances.JL-C15 circuit breakers are  mainly used in Industrial, commercial, high-rise and civil residence.


Specifications:



Item name :

JL-C15(Legrand design)

Standard  :

IEC60898/GB10963

Product Certifications   :

CE,CB,3C

Product Function  :

Short circuit protection, Over current protection

Rated current(A)   :

2-63

No of pole   :

1P,2P,3P,4P,1P+N,3P+N

Rated voltage(V)  :

230/400V

Rated frequency(Hz)  :

50/60

Fiducial temperature    :

30°C

Environment temperature  :

-35~70°C

Installation style standard    :

35mm guide

Connection type   :

Tunnel style, Pin style, U style

Biggest wiring ability   :

25mm2

Magnetic tripping curve  :

B(3-5In),C(5-10In),D(10-20In)

(ICU)Rated capacity of short circuit:

6000

(ICS)Operation capacity of short circuit :

6000

Mechanical life :

10000

Electrical life :

4000

Protection degree :

IP20
