Industrial MCCB Moulded Case iec 60947-2 circuit-breakers 3 or 4 Poles

China Industrial MCCB Moulded Case iec 60947-2 circuit-breakers 3 or 4 Poles supplier

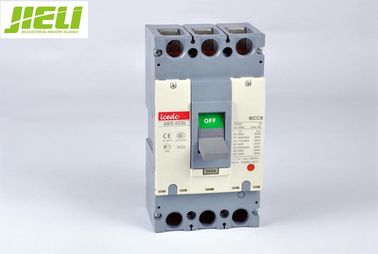

Large Image :  Industrial MCCB Moulded Case iec 60947-2 circuit-breakers 3 or 4 Poles

Product Details:

Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898-1
Model Number: JL-ABS

Payment & Shipping Terms:

Minimum Order Quantity: 1200 Piece/Pieces other
Price: Negotiable
Packaging Details: Standard export carton or according to your request.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 1000000 Piece/Pieces per Month
Contact Now
Detailed Product Description



Industrial MCCB Moulded Case iec 60947-2 circuit-breakers 3 or 4 Poles





Quick Detail:



Place of Origin:

Zhejiang China (Mainland)

Brand Name:

JIELI

Model Number:

JL-ABS Moulded case circuit breaker

Type:

Moulded Case Circuit breaker

Poles Number:

3,4,3 or 4

Rated current:

63A-1250A

Number of poles:

3/4P

Breaking capacity:

22KA-100KA

Insulation voltage:

690V

Frequency:

50/60Hz AC

color:

White/Black

Certificate:

CE,ISO

standard:

IEC60947-2

quality:

stable









Description:



ABE/ABS series MCCB moulded case circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

ABE/ABS series MCCB moulded case is a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life.

ABE/ABS series MCCB moulded case can be used for conversion of line and infrequent starting motor.

ABE/ABS series MCCB moulded case can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.

ABE/ABS series MCCB moulded case can install connection line with front board and back board,

ABE/ABS series MCCB moulded case circuit breaker also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.





Specifications:



Type

2pole

ABE-32b

ABE-52b

ABS-52b

ABE-62b

ABS-62b

3pole

ABS-33b

ABE-53b

ABS-53b

ABE-63b

ABS-63b

Frame size(AF)

30

50

60

Rated operational voltage(V)Ue (50/60Hz)

600

600

600

600

600

Rated insulation voltage(V)Ui(50/60Hz)

690

690

690

900

900

Rated impulse withstand voltage(KV)Uimp

6

6

6

6

6

Ultimate breaking capacity (KA,Icu AC 50/60Hz)

220V/240V

10

10

25

10

25

380V

7.5/5

7.5/5

14/10

7.5/5

14/10

415V

7.5/5

7.5/5

14/10

7.5/5

14/10

440/460V

5

5

10

5

10

480/500V

2.5

2.5

7.5

2.5

7.5

600V

2.5

2.5

5

2.5

5

Utilization category

A

A

A

A

A

Endurance

Mechanical

8500

8500

8500

8500

8500

Electrical

1500

1500

1500

1500

1500



Type

2pole

ABE-102b

ABS-102b

ABE-203b

ABS-203b

ABE-403b

ABS-403b

3pole

ABE-103b

ABS-103b

Frame size(AF)

100

225

400

Rated current(A)

5,10,15,20,30,40,

50,60,75,100

15,20,30,40,50,

60,75,100

100,125,150,175,

200,225

250,300,

350,400

Rated operational voltage

(V)Ue (50/60Hz)

600

Rated insulation voltage

V)Ui(50/60Hz)

690





Our service:



1. Samples: provide free samples.

2. Package: all products will be well packed before shipping.

3. Warranty: all products have 2-5 years warranty.

4. Delivery: within 30days after received the deposit.

5. Provide OEM and ODM service.

6. We can help you with any of your idea to design and put it into production.

7. Provide help for building factories, such as: spare parts, technical questions,

financial matter, management problem , approach of sales...







FAQ:



Q1. What's the payment term?

A. We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH

Q2. What's the delivery time?

A. Usually it will take about three weeks for production

Q3. What is the standard of package?

A. Export standard package or special package according to customer requirement

Q4. What kind of product quality your factory offer?

A. We offer most competitive prices with best quality

Q5. Do you accept OEM and ODM business?

A: We accept OEM with your authorization.

Q6. What kind of material of circuit breaker?

A.We have two types, one copper coil with silver point and the other is brass coil with copper point.

It depends on your requirement. In fact, those two have no difference. If normally works well, only

except the electrical life. Copper and silver is better and are also in higher price.
