Magnetic 80A 100A 125A 630A 1600A Moulded Case Circuit Breaker black 2P 3P 4P CB

Magnetic 80A 100A 125A 630A 1600A Moulded Case Circuit Breaker black 2P 3P 4P CB
Magnetic 80A 100A 125A 630A 1600A Moulded Case Circuit Breaker black 2P 3P 4P CB

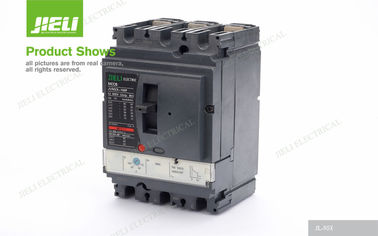

Large Image :  Magnetic 80A 100A 125A 630A 1600A Moulded Case Circuit Breaker black 2P 3P 4P CB

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/CB/TUV
Model Number: JL-NSX

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: schneider moulded case circuit breaker Standard export cartons or according to the customer's requirements Packing quantity:20 pcs/carton Packing measurement:Carton40x26x20 cm /44x31x22cm/41x27x26cm/42x26.5x26cm N.W:25 KG/carton G.W:27KG/carton
Delivery Time: Within 10-30 days
Payment Terms: Payment Terms: L/C,D/A,D/P,T/T, Western Union, Cash
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description
High Light:

mccb switch

,

low voltage circuit breaker



Magnetic 80A 100A 125A 630A 1600A Moulded Case Circuit Breaker black 2P 3P 4P CB





Quick Detail:


Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Model Number: JL-NSX
Type: Moulded Case
Poles Number: 2,3,4
Contacts: Silver/Copper
Specification: JL-NSX 3P
Name: Schneider moulded case circuit breaker
Frequency: 50/60Hz
Color: white, black
Quality: Stable and reliable
Guarantee: 5 years warranty
Certificate: CE/ISO9001/CB/TUV
Rated operating current: 12.5A,16A,25A-63A,80A,100A,125A-630A,800A,125.A,1600A
Rated voltage: AC690V,750V(DC)





Description:



JL-NSX moulded case circuit breaker’s normal working condition and installation condition:

1. The ambient temperature should be -5°C≤T≤40°C.

2. The max distance should not exceed 2000m.

3. The relative humidity should not exceed 50% at 40°C.

4. The external magnetic within 5 times of earth magnetic field.

5. Installed by standard mounting rail.

6. Upright installation, knob upwards is switch on position.

7. Without obviously impact and libration.





Applications:



JL-M1 (Schneider NSX) Series moulded case circuit breaker is one of breaker which adopts international advanced design, manufacture technology to develop moulded case circuit breaker.

The rated insulating voltage is 750V, suit-able for AC 50Hz(60Hz),rated working voltage 690V or below, rated working current is 12.5A to1250A of circuit and used in distributing electric energy, and non-frequent breaking in the nor-mal conditions , protecting the current& equipment from overload&under voltage, circuit breaker with rated frame current 400A or below, can be used in mouse cage motor's non-frequent start, breaking during working, protecting motor from overload, short circuit&under voltage.

JL-M1 (Schneider NSX) Series moulded case circuit breaker conforms to IEC60947-2 standard.





Specifications:



Specification

 NSX100

NSX160

NSX250

NSX00

 NSX630

Frame Current(A)

100

160

250

400

630

Number of Poles

3,4

3,4

3,4

3,4

3,4

Ultimate Breaking Capacity(Icu  KA)

F

H

F

N

H

F

N

H

F

N

H

F

N

H

AC220/240V(KA)

85

90

100

85

90

100

85

90

100

40

85

100

40

85

100

AC380/415V(KA)

36

50

70

36

50

70

36

50

70

36

50

70

36

50

70

Rated Insulation Voltage

AC800

Rated Working Vlotage

AC960

Rated Current ,Thermal Tripping, TMD

63,80,100

100,1245,150,160

200,220,250

300,400

630

Rated Current ,Electronic Tripping, TMD

400,100

400,100,160

100,160,250

250,400

250,400,630

Auxiliary, Alert, Fault Accessories

OF/SD/SDE/SDX

Shunt&Under Voltage Coil

MX/MN

Mechanical Life

50000

40000

20000

15000

15000

Electrical Life

30000

20000

10000

6000

4000

Installation type

Fixed
