Household Safety Moulded Case Thermal Circuit Breaker Adjustable 100A 160A 250A

China Household Safety Moulded Case Thermal Circuit Breaker Adjustable 100A 160A 250A supplier

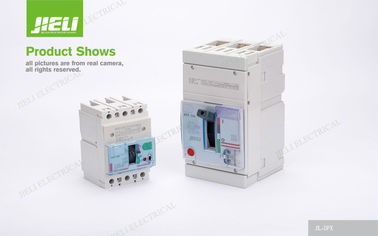

Large Image :  Household Safety Moulded Case Thermal Circuit Breaker Adjustable 100A 160A 250A

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/CB/TUV
Model Number: JL-DPX

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: moulded case circuit breaker Standard export cartons or according to the customer's requirements Packing quantity:20 pcs/carton Packing measurement:Carton40x26x20 cm /44x31x22cm/41x27x26cm/42x26.5x26cm N.W:25 KG/carton G.W:27KG/carton
Delivery Time: Within 10-30 days
Payment Terms: L/C,D/A,D/P,T/T, Western Union, Cash
Supply Ability: 1000000 Piece/Pieces per Month
Contact Now
Detailed Product Description



Household Safety Moulded Case Thermal Circuit Breaker Adjustable 100A 160A 250A





Quick Detail:


Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Model Number: JL-DPX
Type: Moulded Case
Poles Number: 2,3,4
Contacts: Silver/Copper
Specification: JL-DPX 4P
Name: Schneider moulded case circuit breaker
Frequency: 50/60Hz
Color: white, black
Quality: Stable and reliable
Guarantee: 5 years warranty
Certificate: CE/ISO9001/CB/TUV
Rated operating current: 12.5A,16A,25A-63A,80A,100A,125A-630A,800A,125.A,1600A
Rated voltage: AC690V,750V(DC)





Description:


- Simple introduction for our DPX Moulded Case Circuit Breaker mccb


DPX series of Moulded Case Circuit Breaker(MCCB) employed the latest current-limiting theory and manufacture  technology.

The advantages of Moulded Case Circuit Breaker are as follows: compact structure, completed modularity, high breaking capacity and zero flashover etc. The rated insulation voltage is750V, adopted suitably in alternating current 50/60Hz.This series Moulded Case Circuit Breaker can prevent circuit and E-type compact power supply equipment from being damaged, with overload, short circuit and under voltage protective devices.


-Working environment for Moulded Case Circuit Breaker mccb circuit breaker
The working conditions of this type Moulded Case Circuit Breaker are as follows: under the altitude of 2000 meters; between the -25 and 70 Celsius (equipment must be derated while the temperature is higher than 65 Celsius);Moulded Case Circuit Breaker can withstand damp air, salt fog and other atrocious weather.



Applications:




The rated insulation voltage of Moulded Case Circuit Breaker is 690V, suitable for the circuit with AC 50Hz(60Hz), the rated working voltage of 550V and below, and the rated operating current up to 400A, which will be used for distributing electrical energy. The Moulded Case Circuit Breaker is equipped with overload and short circuit protection device, so as to protect the circuit and power equipment from damage.


Specifications:





Specification

 DPX100

DPX160

DPX250

DPX00

 DPX630

Frame Current(A)

100

160

250

400

630

Number of Poles

3,4

3,4

3,4

3,4

3,4

Ultimate Breaking Capacity

(Icu  KA)

F

N

H

F

N

H

F

N

H

F

N

H

F

N

H

AC220/240V(KA)

85

90

100

85

90

100

85

90

100

40

85

100

40

85

100

AC380/415V(KA)

36

50

70

36

50

70

36

50

70

36

50

70

36

50

70

Rated Insulation Voltage

AC800

Rated Working Voltage

AC960

Rated Current ,Thermal

Tripping, TMD

63,80,100

100,1245,150,160

200,220,250

300,400

630

Rated Current ,Electronic

Tripping, TMD

400,100

400,100,160

100,160,250

250,400

250,400,630

Auxiliary, Alert, Fault

 Accessories

OF/SD/SDE/SDX

Shunt Under Voltage Coil

MX/MN

Mechanical Life

50000

40000

20000

15000

15000

Electrical Life

30000

20000

10000

6000

4000

Installation type

Fixed



Competitive Advantage:




1. Simple in design
A. Including 2P, 3P, 4P;
B. The full range of products covers only four kinds of frame sizes, which will be convenient for future expansion and upgrading;
C. Comprehensive range of protection, including low-voltage distribution protection, motor protection and leakage protection.
2. Simple to install
A. Various accessories can be installed on the site;
B. The position of installation is flexible, which can be installed in the vertical, horizontal, side or back way, and the product function is unaffected;
