Texture Backlit Metal Dome Membrane Switch / Tactile Push Button Switch

Texture Backlit Metal Dome Membrane Switch / Tactile Push Button Switch
Texture Backlit Metal Dome Membrane Switch / Tactile Push Button Switch

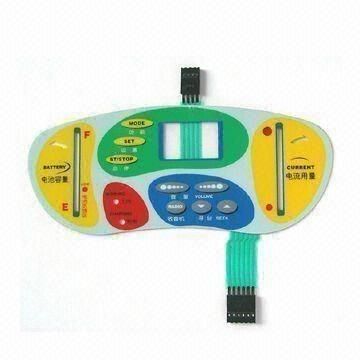

Large Image :  Texture Backlit Metal Dome Membrane Switch / Tactile Push Button Switch

Product Details:
Place of Origin: Shenzhen
Brand Name: BEZ
Certification: ISO9001
Model Number: 390-9-1
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiation
Packaging Details: 50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time: 7-10 days
Payment Terms: T T WestUnion
Supply Ability: 1000000 pcs each day
Detailed Product Description
High Light:

single membrane switch

,

custom membrane switch



Texture Backlit Metal Dome Membrane Switch / Tactile Push Button Switch





Quick Detail:





> Total thickness : 1.0 mm

> First layer : DF F150

>  Second layer : adhesive DT 6100

> Third layer : metal dome protector mylar 0.1 mm

> Forth layer : FPC cooper foiled circuit 0.125 mm

> Fifth layer : adhesive 3M467

> Led color : green,red ,yellow and white single color

> Pitch : 1.0 mm

> Water proof class : IP 67

> Connector : without

> Matching color: Pantone and RAL color matching system.









Description:





> Surface :Matte

> Overlay button: embossed 0.35 mm

> Top circuit: Φ 8 mm metal dome

> Bottom circuit : flat

> Window : no

> Led window : no color coated translucent

> Push force : 280 g

> Main electronic compents : LED , metal dome

> Operating condition : 40°c,90%~95%,for 240 hours

> Life span : 1000000 times

> Circuit crossing : yes

> Conductive side :top side conductive

> Tolerance:0.05 mm



 Applications:

1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on


B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .


C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on



 Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome







Specifications



1. Electrical



Maximum Circuit Rating: 35V(DC),100mA,1W

35V DC,100mA,1W



Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)

10Ω~500Ω



Insulation Resistance: 100MΩ 100V

100MΩ at 100V DC



Dielectric: 250 Vrms (50~60Hz 1min)

250V Rms(50-60Hz 1min)



Contact Bounce: < 5ms

5ms or less



Life:   Flat: ≥ 5million times



           Tactile: ≥ 1 million times

            Duraswitch: ≥ 10million times

Flat type 60g~300g(2~10OZ)



Tactile type 150g~400g(6~14OZ)





2. Mechanical

Flat type 0.1~0.5mm



Tactile type 0.6~1.5mm



Actuation Force: Flat: 57~284g(2~10oz)

                             Tactile: 170~397g(6~14oz)

Flat type Five million closures or more Tactile type one million closures or more




Switch Height:  Flat: 0.1~0.5mm



                            Tactile: 0.6~1.5mm

-40°c~+80°c







A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
