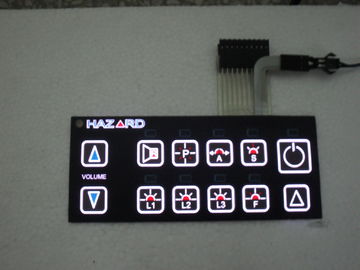

EL Display Backlit Membrane Switch With Embossed 280g Force Metal Dome

China EL Display Backlit Membrane Switch With Embossed 280g Force Metal Dome supplier

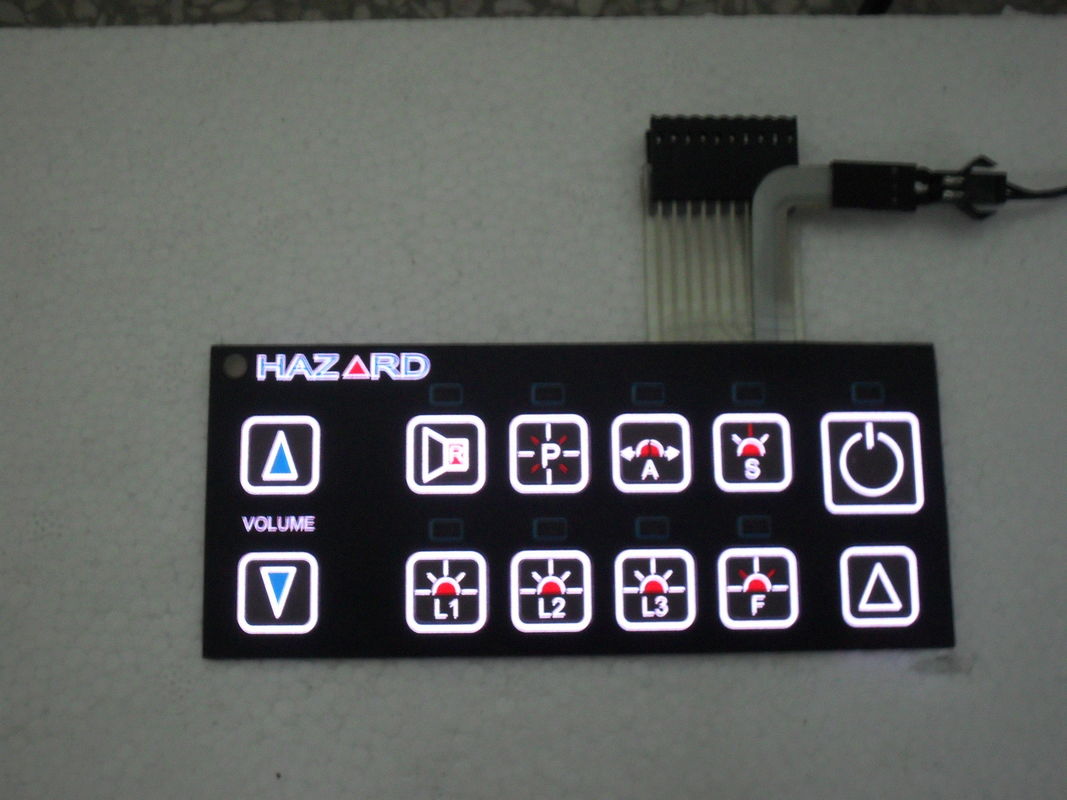

Large Image :  EL Display Backlit Membrane Switch With Embossed 280g Force Metal Dome

Product Details:

Place of Origin: China
Brand Name: BEZ
Certification: ROHS ISO9001
Life span :: >100000 times
Key button: embossed

Payment & Shipping Terms:

Minimum Order Quantity: 300 USD
Price: negotiation
Delivery Time: 7-10 days
Payment Terms: Ex works
Supply Ability: 1, 000, 000PCS/week
Contact Now
Detailed Product Description



EL Display Backlit Membrane Switch With Embossed 280g Force Metal Dome





Quick Detail:



Name

Membrane switch

Brand Name

BEZ

Color

Transparent, ,black,white

Feature

Water proof, UV proof ,good tactile feeling ,matte

Life Span

>100000 times

Certificate

RoHS,

Pin

8

pitch

1.0 mm

Push force

280g

Tail protection

0.05 adhesive PET and green oil printed

Resistance

450 ohm-450 ohm

size

221mm *166 mm





Description:



> Top material: Du Pont PET

>El display under top graphic overlay

>Rear adhesive : 3M467

>Colors: 4 Colors

> Push button: 14

>Tail Length: 250 mm

> Window: glossy clear transparent

> Connector: without

> Leds : without

>Can design for customer if supplied artwork and schematic

>7 days for sample making and 15 days for mass order

>Clear outlook without dirty






Applications:



1.     A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
  B. For mechanical and electrical products such as CNC machine electric weighing  ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
  C. For domestic appliance , remote control ,electronic lock , washing machine , microwave oven ,electric cooker ,sound installation and so on

D. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on .

E. For electronic toy, such as electronic organ, recreational machine, electronic target and so on .


3. Note:

Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome

Tail end inserting to female connector usually only allowed no more than 20 times





Specifications



Model

4-1-7

Graphic overlayer

F150

Embossed  style

                   Metal dome

Adhesive

3M467

Resistance

350 ohm

Pitch

1.0 mm

Tolerance

0.05 mm

Printing Colors

Transparent, red, yellow, blue ,black ,grey

Window

Transparent clear glossy



Why to choose Shenzhen boerzhuo membrane switches?

1.No need to worry about the qualities (We take response if our reason lead failure ).
2.Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3.We are specialized ,can help to design and make good suggestion .





Communication with customers

A: Hello, Can you help me ? What’s the different from membrane switches and membrane panel ?

B: Dear, the most difference is that membrane switches with circuit layer ,however membrane panel without .





A: What’s the lead time for sample and mass order  ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A:Which shipping partner is available ?

B: DHL, UPS, TNT, FEDEX, forwarder are okay. Which shiping cost is cheaper and speed is good, i will suggest to you. 3-4 days can arrive.



A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.

A:What’s the different from EL display membrane switch and LED membrane switch



B: El display must be used together with DC driver ,and the light is more uniform than LED ,also much lighter
